Запчасти Case IH FARMALL 95 (1.92.87[04]) - MUDGUARDS AND FOOTBOARDS - L/CAB - C6752 (10) - OPERATORS PLATFORM/CAB

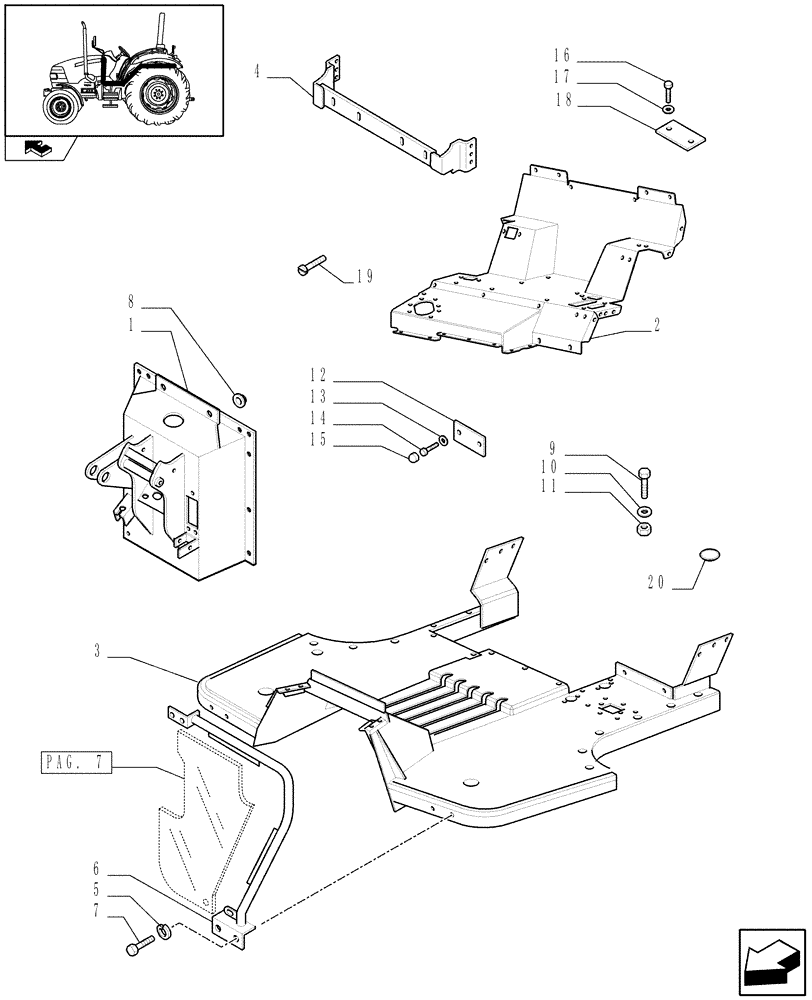

Схема запчастей Case IH FARMALL 95 - (1.92.87[04]) - MUDGUARDS AND FOOTBOARDS - L/CAB - C6752 (10) - OPERATORS PLATFORM/CAB
12
4
6
16
5
15
17
10
pag. 7
home
11
3
1
19
20
18
9
13
7
2
8
14

Артикул

Название

Примечание

Количество

1

87624512

GUARD

, Serial Range: -C6811

1шт.

1

84404376

GUARD

1шт.

Power Shuttle e Servo PTO for Mechanical Differential Lock, VAR.330120-331120

1шт.

1

84251708

GUARD

, Start Serial: D6811

1шт.

2

87607093

PLATE

1шт.

2

87617233

PLATE

1шт.

Automatic Pick Up Hitch with Swinging Drawbar and Hook, Mirror and less Protection, VAR.335929

1шт.

3

87537918

FLOOR

1шт.

4

5091865

SUPPORT

1шт.

4

87594497

SUPPORT

1шт.

Automatic Pick Up Hitch with Swinging Drawbar and Hook, Mirror and less Protection, VAR.335929

1шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

33шт.

6

87725193

SUPPORT

LH

1шт.

6

87725192

SUPPORT

RH

1шт.

7

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

23шт.

8

87679075

BUSHING,12.1mm ID x 26mm OD x 6mm L

1шт.

9

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

9шт.

10

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

11

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

12

5092169

COVER

1шт.

13

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

14

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

15

5089481

CAP,17mm OD

2шт.

16

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

17

12035670

LOCK WASHER

2шт.

18

87392979

PLATE

1шт.

With Single Lever PTO, VAR.335250

1шт.

19

13299117

SCREW

6шт.

20

84415630

PLUG

1шт.

Выбрано товаров: 29
