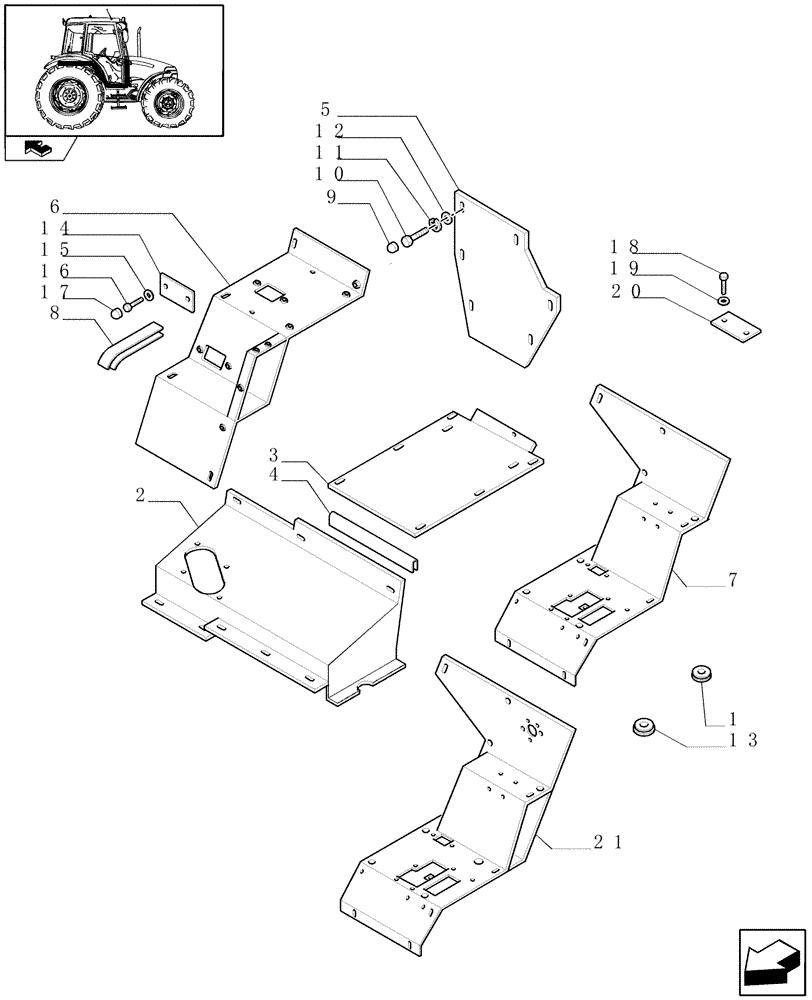

Запчасти Case IH FARMALL 95 (1.92.87[03]) - MUDGUARDS AND FOOTBOARDS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

5094072

GROMMET

1шт.

2

5097715

FLOOR

1шт.

3

5089527

FLOOR

1шт.

4

5094446

SEAL

1шт.

5

5089577

PLATE

1шт.

6

5097848

FLOOR

RH

1шт.

7

87393078

FLOOR

LH, Serial Range: -C6480

1шт.

8

5094447

SEAL

RH

1шт.

9

5089481

CAP,17mm OD

9шт.

10

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

26шт.

11

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

26шт.

12

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

23шт.

13

10399580

GROMMET,8mm ID x 14mm GRV ø x 20mm OD x 8mm Thk

1шт.

14

5092169

COVER

1шт.

15

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

16

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

17

5089481

CAP,17mm OD

2шт.

18

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

19

12035670

LOCK WASHER

2шт.

20

87392979

PLATE

1шт.

With Single Lever PTO, VAR.335250

1шт.

21

84219072

PLATFORM

LH, Start Serial: D6480

1шт.
