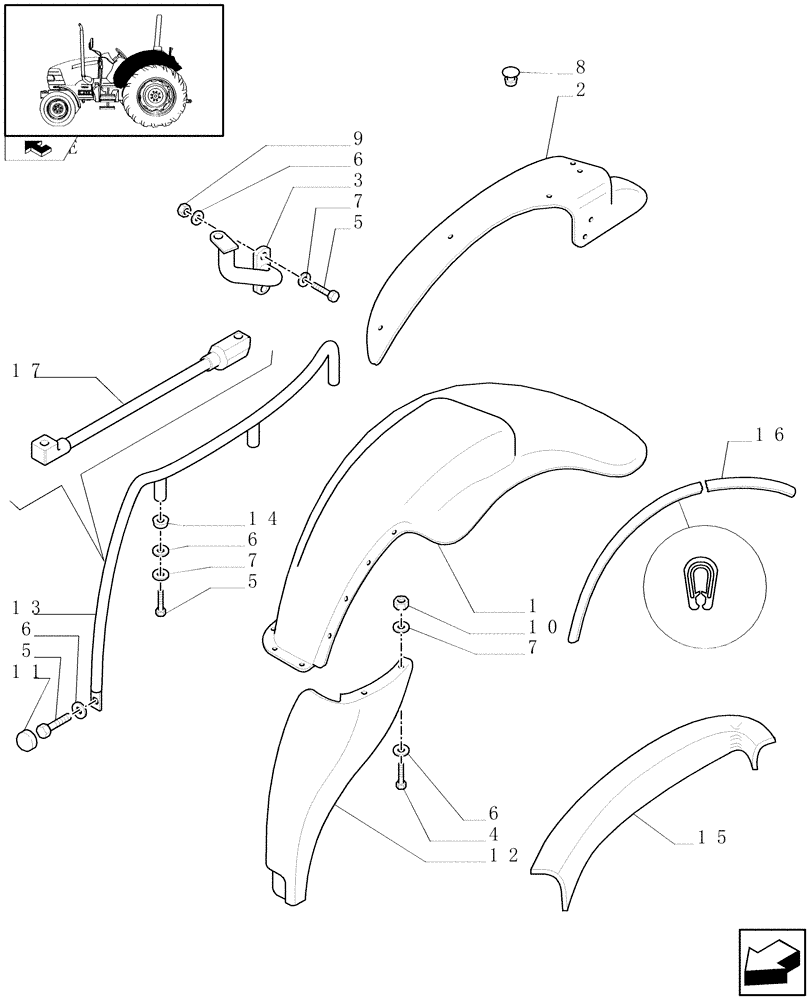

Запчасти Case IH FARMALL 95 (1.92.87[02]) - MUDGUARDS AND FOOTBOARDS - L/CAB (10) - OPERATORS PLATFORM/CAB

1

5097891

MUD CLEANER

RH

1шт.

1

5097897

MUD CLEANER

LH

1шт.

2

5090465

FENDER

Outer RH, 90 Model

1шт.

2

5093462

FENDER

Outer RH, 95 Model

1шт.

2

5090466

FENDER

Outer LH, 90 Model

1шт.

2

5093461

FENDER

Outer LH, 95 Model

1шт.

3

5090659

SUPPORT

RH

1шт.

3

5090660

SUPPORT

LH

1шт.

4

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

8шт.

5

16044821

SCREW,Hex, M8 x 80mm, Cl 8.8

10шт.

6

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

7

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

22шт.

7

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

10шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

18шт.

8

5093850

PLUG,9mm OD

D=9

10шт.

9

14193290

NUT

10шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

11

5089481

CAP,17mm OD

2шт.

12

5089970

FENDER EXTENSION

RH, 90 Model

1шт.

12

5093465

FENDER EXTENSION

RH, 95 Model

1шт.

12

5089971

FENDER EXTENSION

LH, 90 Model

1шт.

12

5093467

FENDER EXTENSION

LH, 95 Model

1шт.

13

5089975

HANDRAIL

RH

1шт.

13

5089976

HANDRAIL

LH

1шт.

14

5092184

SEAL

6шт.

15

5092828

COVER

RH

1шт.

15

5092829

COVER

LH

1шт.

16

5093471

TRIM,2250mm L

95 Model

2шт.

17

84161151

BAR

1шт.

For High Clearance Version (Valid for 95 Model only)

1шт.
