Запчасти Case IH FARMALL 95 (1.92.83[03]) - FRONT CONSOLE TRIM - W/CAB (10) - OPERATORS PLATFORM/CAB

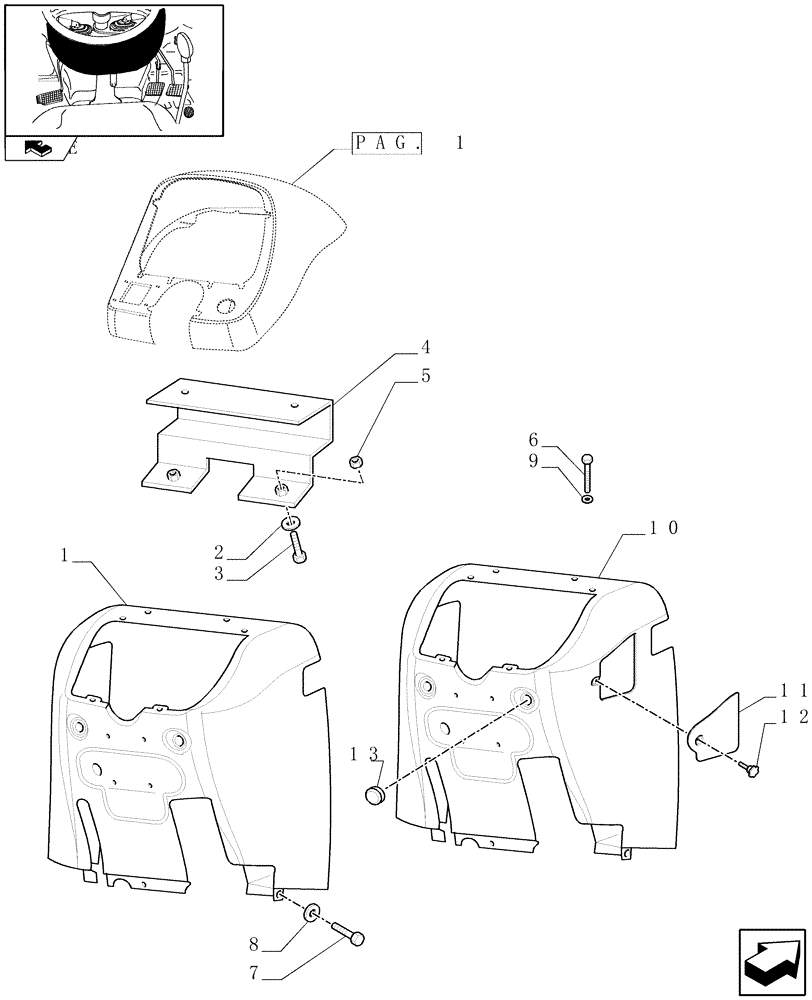

Схема запчастей Case IH FARMALL 95 - (1.92.83[03]) - FRONT CONSOLE TRIM - W/CAB (10) - OPERATORS PLATFORM/CAB
13
5
2
4
1
3
7
8
10
home
pag. 1
9
11
6
12

Артикул

Название

Примечание

Количество

1

87395795

SEPARATOR HOOD

, Serial Range: -C6480

1шт.

2

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

2шт.

3

14238130

SCREW,M8

2шт.

4

5090447

BRACKET

1шт.

5

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

6

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

7

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

8

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

9

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

10

84236283

SEPARATOR HOOD

, Start Serial: D6480

1шт.

11

84242163

SEPARATOR HOOD

, Start Serial: D6480

1шт.

12

84242533

SCREW,M5 x 0.8 x 0.8mm

, Start Serial: D6480

1шт.

13

84232640

PLUG

1шт.

Выбрано товаров: 13
