Запчасти Case IH FARMALL 95 (0.05.4[03]) - MAINTENANCE PARTS - FUSES (00) - GENERAL

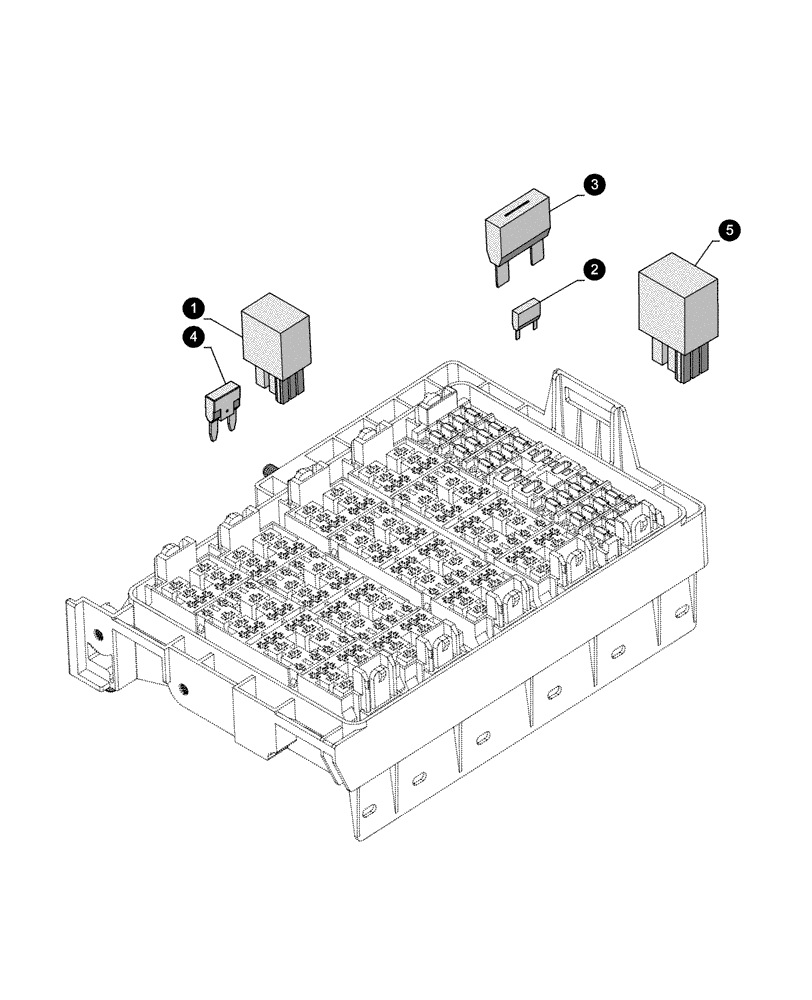

Схема запчастей Case IH FARMALL 95 - (0.05.4[03]) - MAINTENANCE PARTS - FUSES (00) - GENERAL
4
2
1
5
3

Артикул

Название

Примечание

Количество

1

86619908

RELAY,12V, 150A

12V

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models

1шт.

Valid with VAR. 330204

1шт.

D6617 After Date (04 November 2009 Ankara Prod./ April 2010 Jesi Prod.)

1шт.

1

84402860

RELAY

15A

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models

1шт.

Valid with STD

1шт.

D7039 After Date 02 February 2009

1шт.

2

87717079

FUSE,7.5A

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models

1шт.

Valid with STD

1шт.

D6983 Serial N. (02 March 2011 Ankara Prod. / 25 October 2010 Jesi Prod.)

1шт.

2

5080122

FUSE,40A, Strip

40A

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models

1шт.

Valid with STD

1шт.

D6983 Serial N. (02 March 2011 Ankara Prod. / 25 October 2010 Jesi Prod.)

1шт.

3

9811773

FUSE,10A, Micro, Red

10A

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models

1шт.

3

89804895

FUSE

20A

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models

1шт.

3

92277

FUSE,30 Amp

30A, Maxival

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models

1шт.

3

5190333

FUSE,40A, Maxi, Orange

40A, Maxival, Orange

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models

1шт.

3

10404290

FUSE

80A, Megaval

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models

1шт.

Valid with VAR. 330007, VAR. 330204

1шт.

C6983 Serial N. (02 March 2011 Ankara Prod. / 25 October 2010 Jesi Prod.)

1шт.

4

84090658

FUSE,Lt Blue, 15 Amp

5A, Minival

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models

1шт.

Valid with STD

1шт.

D6983 Serial N. (02 March 2011 Ankara Prod. / 25 October 2010 Jesi Prod.)

1шт.

4

86503942

FUSE,3A, Micro

3A

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3 Models

1шт.

4

87693742

FUSE,5A

5A

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3 Models

1шт.

Valid with STD

1шт.

4

72186030

FUSE

7.5A

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3 Models

1шт.

4

9811773

FUSE,10A, Micro, Red

10A

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3 Models

1шт.

4

9804895

FUSE,20A, Micro, Yellow

20A

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3 Models

1шт.

4

84100299

FUSE,25A, Micro, Clear

25A

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3 Models

1шт.

4

A149804

FUSE

30A

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3 Models

1шт.

4

47107258

FUSE

40A

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3 Models

1шт.

4

D9ZB14A094FA

FUSE

5A, Minival

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models

1шт.

Valid with STD

1шт.

D6480 After Date (19 January 2010 Ankara Prod./ April 2010 Jesi Prod.)

1шт.

5

5080366

RELAY,12V, 30A

12V, 30A

1шт.

Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models

1шт.

Выбрано товаров: 55
