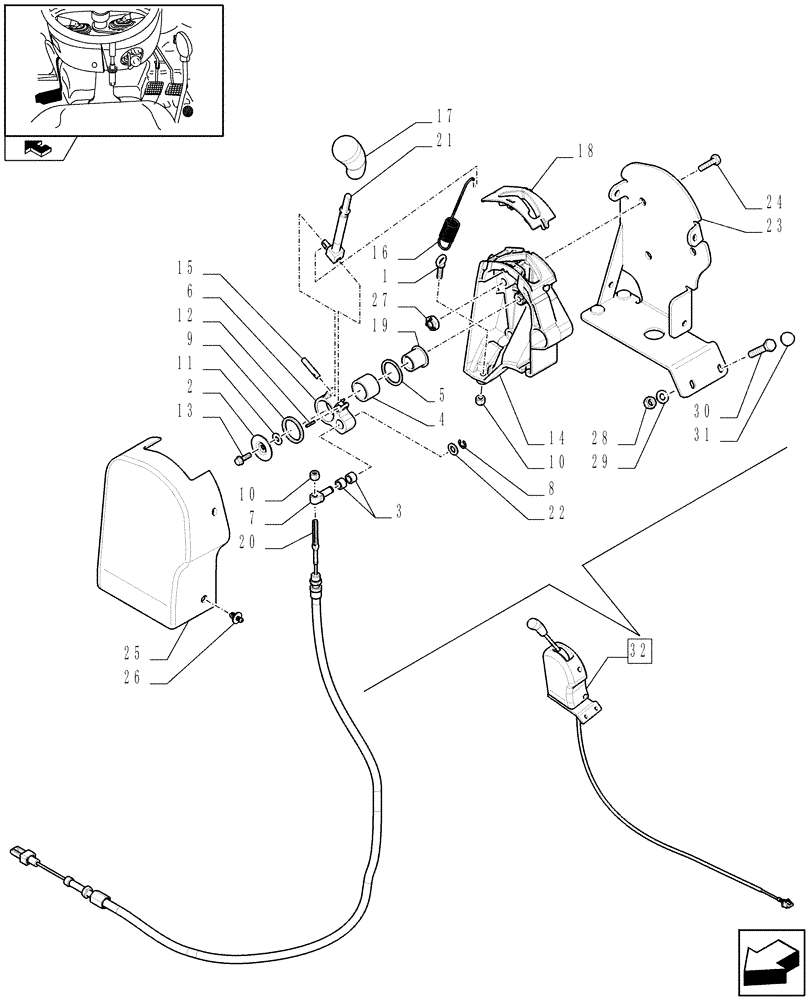

Запчасти Case IH FARMALL 95 (1.92.26/02[04]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - PTO CONTROLS - D6292 (VAR.330120-331120) (10) - OPERATORS PLATFORM/CAB

1

5115351

HOOK,M6 x 1

1шт.

2

87528262

ANTI-WRAP PLATE,6mm ID x 34mm OD

1шт.

3

47743308

NYLON BEARING,Nylon, 8mm ID x 12mm OD x 13mm W

D=8

2шт.

4

5191013

ROLLER BEARING,Needle, 22mm ID x 28mm OD x 20mm W

1шт.

5

5191656

CUP WASHER,28mm ID x 34mm OD x 2mm Thk

1шт.

6

5191700

BUSHING,28mm ID x 36mm OD x 16mm L

1шт.

7

47131077

PIN,8mm

1шт.

8

11087876

CIRCLIP,M7

1шт.

9

87528222

WASHER,28mm ID x 34mm OD x 3mm Thk

1шт.

10

12574221

NUT,M6 x 1, Cl 10

2шт.

11

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

1шт.

12

14159674

ROLL PIN,2.5mm OD x 14mm L

2.5 x 14

1шт.

13

15924904

SCREW,Hex Wshr Hd, M5.5 x 1.8 x 19mm

1шт.

14

87325898

SUPPORT

Incl.24

1шт.

15

47123110

PIN,30mm x 6mm

1шт.

16

84206711

SPRING,Extension, 18mm OD x 110mm L

1шт.

17

5194972

KNOB

1шт.

18

87325900

SECTOR

Toothed

1шт.

19

87325901

BUSHING,15.8mm ID x 22mm OD x 21mm L

1шт.

20

84414304

CABLE

1шт.

21

84284607

CONTROL LEVER

1шт.

22

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

23

84403891

SUPPORT

1шт.

24

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

25

84388724

COVER

1шт.

26

5098024

RIVET,6mm OD x 11mm L

4шт.

27

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

28

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

29

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

30

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

2шт.

31

5089481

CAP,17mm OD

2шт.

32

84474137

CONTROL LEVER

ASSY, Incl. 1-28

1шт.
