(1.92.10/01[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - THROTTLE CONTROL LINKAGE (VAR.330120-331120)

Запчасти Case IH FARMALL 95 (1.92.10/01[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - THROTTLE CONTROL LINKAGE (VAR.330120-331120) (10) - OPERATORS PLATFORM/CAB

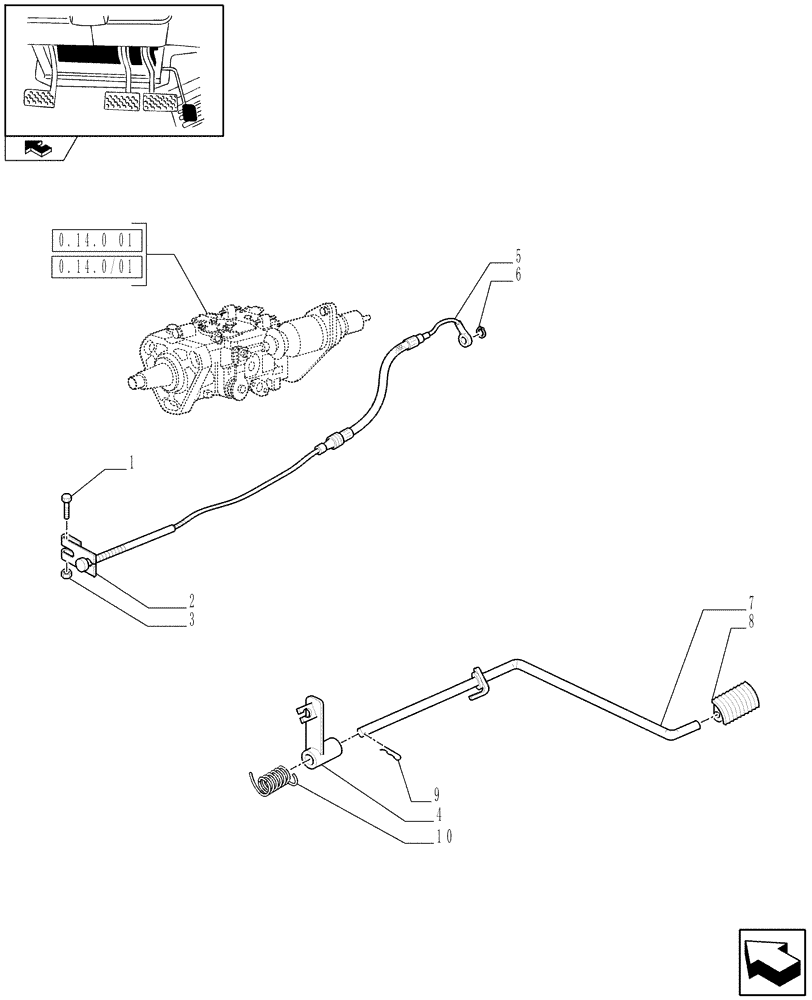

Схема запчастей Case IH FARMALL 95 - (1.92.10/01[02]) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - THROTTLE CONTROL LINKAGE (VAR.330120-331120) (10) - OPERATORS PLATFORM/CAB
7
2
4
1
10
8
0.14.0/01
6
5
home
0.14.0 01
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47134319

CLIP,7.8mm ID x 12.7mm L

1шт.

2

5110214

BRACKET

1шт.

3

15896211

NUT,M6, Cl 8

M6x12.5

1шт.

4

87612985

PEDAL

W/CAB

1шт.

4

87750475

SUPPORT

L/CAB

1шт.

5

87613003

CABLE,211mm L

L/CAB

1шт.

5

87613005

CABLE,225mm L

W/CAB

1шт.

6

11087676

CIRCLIP,M5

1шт.

7

87612983

PEDAL STEM

L/CAB

1шт.

7

87612976

PEDAL STEM

W/CAB

1шт.

8

84250071

PEDAL

1шт.

9

10733601

COTTER PIN,M3.2 x 22

1шт.

10

5097692

SPRING

1шт.

Выбрано товаров: 13
