(1.90.5/01) - TOOL BOX - FOR HIGH CLEARANCE VERSION

Запчасти Case IH FARMALL 95 (1.90.5/01) - TOOL BOX - FOR HIGH CLEARANCE VERSION (10) - OPERATORS PLATFORM/CAB

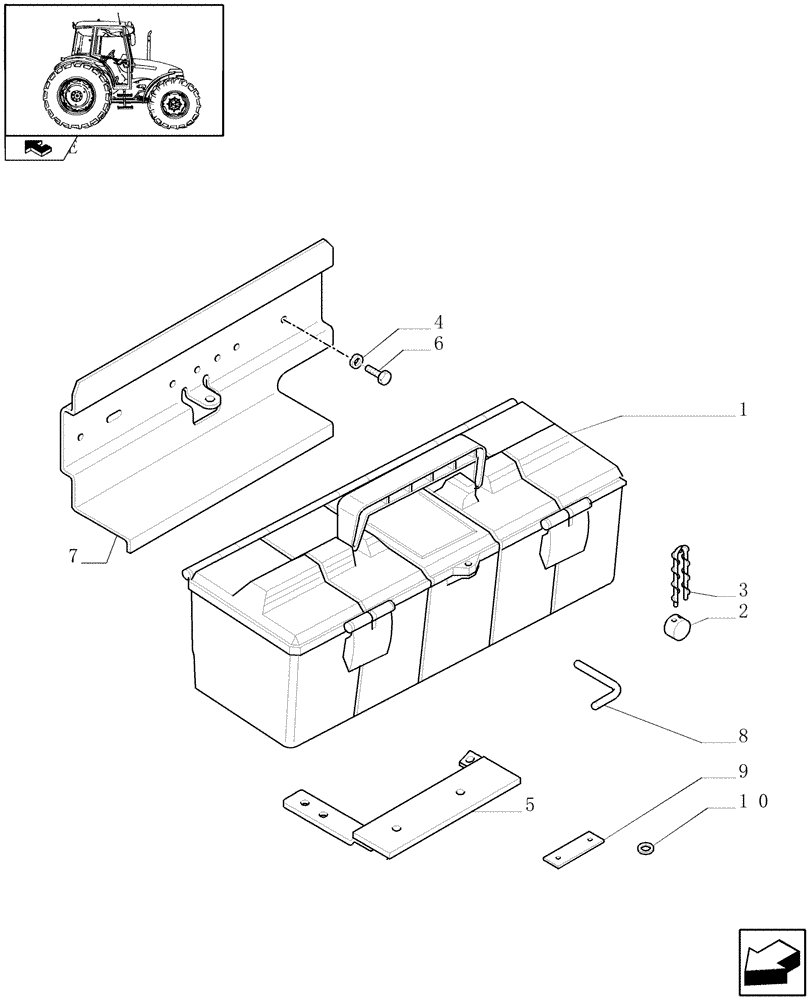

Схема запчастей Case IH FARMALL 95 - (1.90.5/01) - TOOL BOX - FOR HIGH CLEARANCE VERSION (10) - OPERATORS PLATFORM/CAB
2
10
1
3
8
4
6
5
home
7
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5097462

TOOL BOX

ASSY

1шт.

2

747226

FASTENER

1шт.

3

5088746

RETAINING WIRE

WIRE

1шт.

4

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

5

84217082

SUPPORT

1шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

7

5095986

SUPPORT

1шт.

8

5106675

PIN,6mm OD

1шт.

9

84250021

INSULATING PLATE

1шт.

10

84250022

RUBBER WASHER

1шт.
