(1.89.6/07[01]) - 3 POINT LINKAGE WITH CAT.2 FLEXIBLE ENDS AND SWAY BLOCK STABILIZERS - FOR HIGH CLEARANCE VERSION (VAR.332600) - D7006

Запчасти Case IH FARMALL 95 (1.89.6/07[01]) - 3 POINT LINKAGE WITH CAT.2 FLEXIBLE ENDS AND SWAY BLOCK STABILIZERS - FOR HIGH CLEARANCE VERSION (VAR.332600) - D7006 (09) - IMPLEMENT LIFT

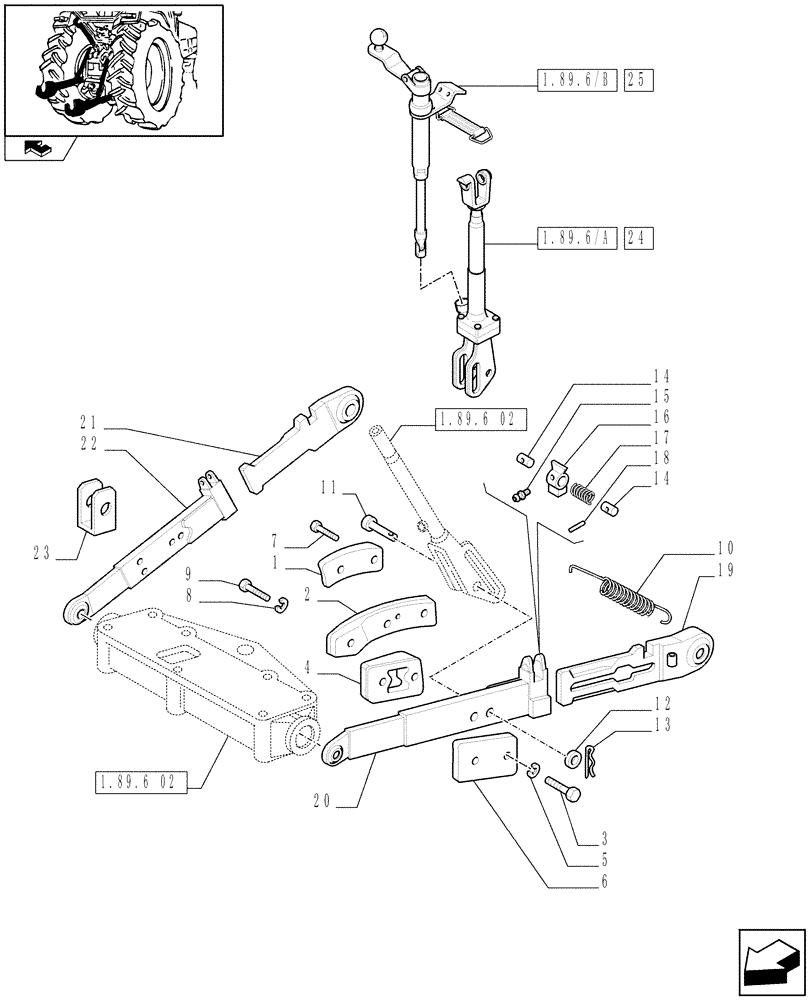

Схема запчастей Case IH FARMALL 95 - (1.89.6/07[01]) - 3 POINT LINKAGE WITH CAT.2 FLEXIBLE ENDS AND SWAY BLOCK STABILIZERS - FOR HIGH CLEARANCE VERSION (VAR.332600) - D7006 (09) - IMPLEMENT LIFT
11
24
6
14
2
12
8
13
18
23
1
10
20
16
21
home
1.89.6/b
1.89.6/a
1.89.6 02
1.89.6 02
19
22
7
25
3
17
15
14
9
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5123638

TRAVEL LIMITER

LH

1шт.

1

5123639

TRAVEL LIMITER

RH

1шт.

2

5120236

TRAVEL LIMITER

LH

1шт.

2

5120237

TRAVEL LIMITER

RH

1шт.

3

15541124

SCREW,Hex, M12 x 1.25 x 65mm, Cl 8.8

4шт.

4

5120258

PLATE

2шт.

5

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

4шт.

6

5120259

PLATE

2шт.

7

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

8

11255921

BOLT,Hex, M14 x 1.5 x 40, 8.8, Full Thd

1шт.

9

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

4шт.

10

4959776

SPRING,33mm OD x 400mm L

400MM

1шт.

11

5096050

PIN

2шт.

12

5104256

WASHER,27mm ID x 44mm OD x 2.5mm Thk

D=27

2шт.

13

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

14

44012765

PIN

4шт.

15

13407211

LUBE NIPPLE,M10 x 1

1шт.

16

44012763

STOP

2шт.

17

44012764

SPRING

2шт.

18

14164770

LOCK PIN,M4 x 40, Slotted

3шт.

19

44018644

TRACK ROD END ASSY

LH

1шт.

20

5131561

LIFT ARM

LH, Incl. 14-18

1шт.

21

44018642

TRACK ROD END ASSY

RH

1шт.

22

5131557

LIFT ARM

RH, Incl. 14-18

1шт.

23

5093188

SPACER

1шт.

24

5092248

UPPER LINK

ASSY, RH

1шт.

25

5093423

TIE-ROD

ASSY, RH

1шт.
