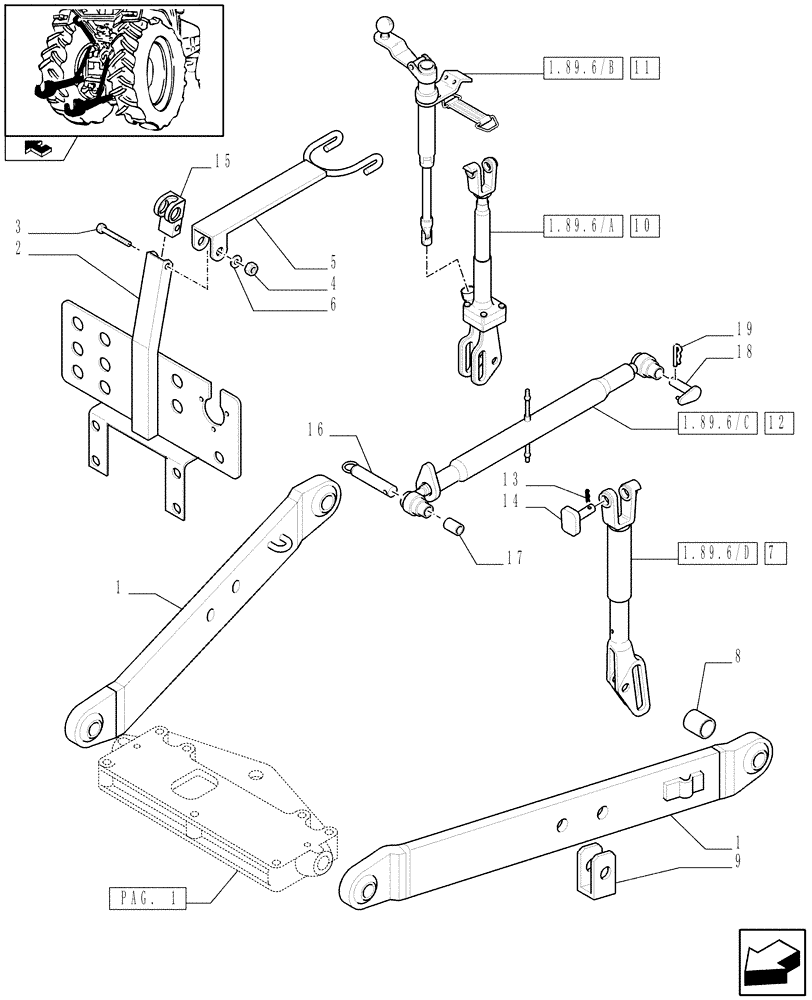

Запчасти Case IH FARMALL 95 (1.89.6[02]) - IMPLEMENT CARRIER (09) - IMPLEMENT LIFT

1

5158928

LIFT ARM

2шт.

1

5092156

LIFT ARM

2шт.

2

5092601

SUPPORT

1шт.

3

16044521

SCREW,Hex, M8 x 65mm, Cl 8.8

1шт.

4

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

5

5092607

SUPPORT

1шт.

6

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

7

5193948

LIFT LINK

ASSY, LH, 90 Model

1шт.

7

5092243

UPPER LINK

ASSY, LH, 95 Model

1шт.

8

5192619

BUSHING,22mm ID x 28.4mm OD x 35mm L

2шт.

9

5093188

SPACER

1шт.

10

5093187

UPPER LINK

ASSY, RH, 90 Model

1шт.

10

5092248

UPPER LINK

ASSY, RH, 95 Model

1шт.

11

5093423

TIE-ROD

ASSY, RH

1шт.

12

84388389

UPPER LINK

ASSY

1шт.

13

87383335

COTTER PIN,4mm x 68mm L

1шт.

Mexico Package, VAR.335088 (Valid for 95 Model)

1шт.

14

47126271

PIN,22mm OD x 84mm L

2шт.

14

5096050

PIN

2шт.

For High Clearance Version (Valid for JH95 Model only)

1шт.

15

84387663

SUPPORT

1шт.

Automatic Waltersheid, VAR.335946

1шт.

16

561831

PIN,19mm OD x 100mm L

90 Model

1шт.

17

5134566

BUSHING,19.4mm ID x 25mm OD x 44mm L

90 Model

1шт.

18

5120672

PIN,25.5mm OD x 111mm L

1шт.

19

87383335

COTTER PIN,4mm x 68mm L

1шт.
