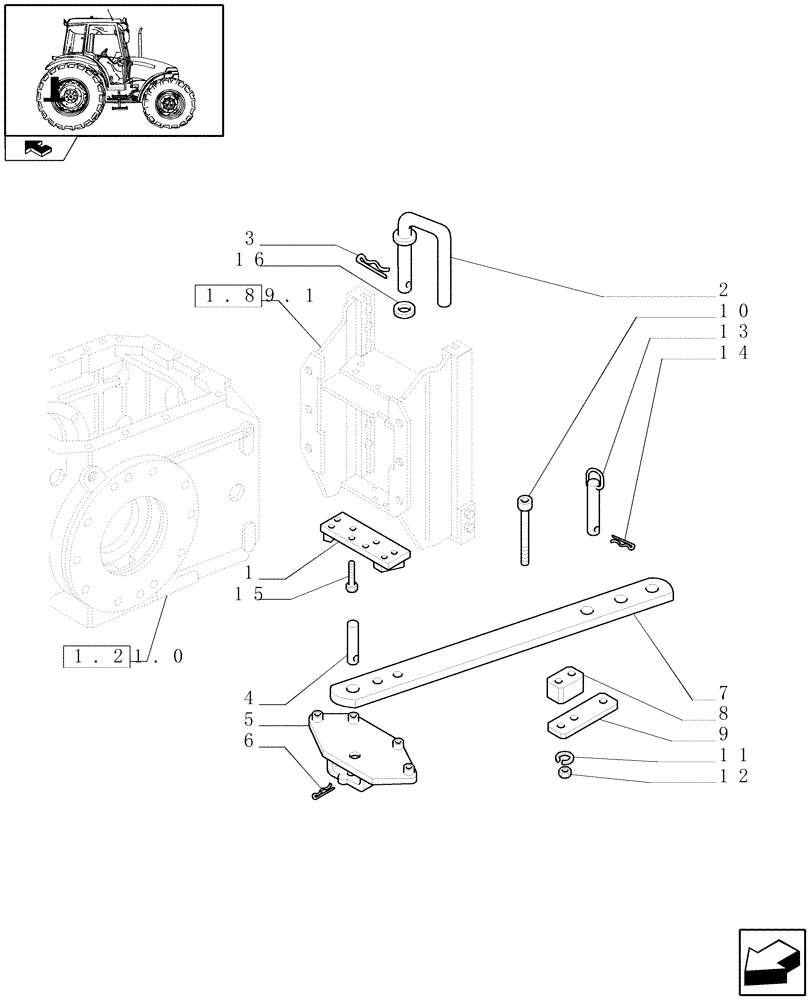

Запчасти Case IH FARMALL 95 (1.89.0/03) - SWINGING DRAWBAR FOR HITCH AND SUPPORT - (GERMANY) (VAR.336398) (09) - IMPLEMENT LIFT

1

5095153

DRAWBAR SUPPORT

1шт.

2

5096393

PIN

1шт.

3

5112606

COTTER PIN,2.5mm OD x 66.5mm L

1шт.

4

5116252

PIN,28mm OD x 80mm L

1шт.

5

5095154

DRAWBAR SUPPORT

1шт.

6

84416689

COTTER PIN

4MM

1шт.

7

5094000

DRAWBAR,668mm L x 60mm W x 35mm Thk

1шт.

8

5121551

SPACER

1шт.

9

5093297

DRAWBAR,220mm L x 60mm W x 30mm Thk

1шт.

10

15986634

BOLT,Hex, M18 x 1.5 x 170mm, Cl 10.9

2шт.

11

10572279

WASHER,M18

2шт.

12

10721021

NUT,M18 x 1.5, Cl 10

2шт.

13

5093226

HITCH PIN,31.5mm OD x 192mm L

1шт.

14

5085461

COTTER PIN

1шт.

15

15982131

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

4шт.

15

11119921

SCREW,Hex, M16 x 100mm, Cl 8.8

4шт.

16

10572179

LOCK WASHER,M16

1шт.
