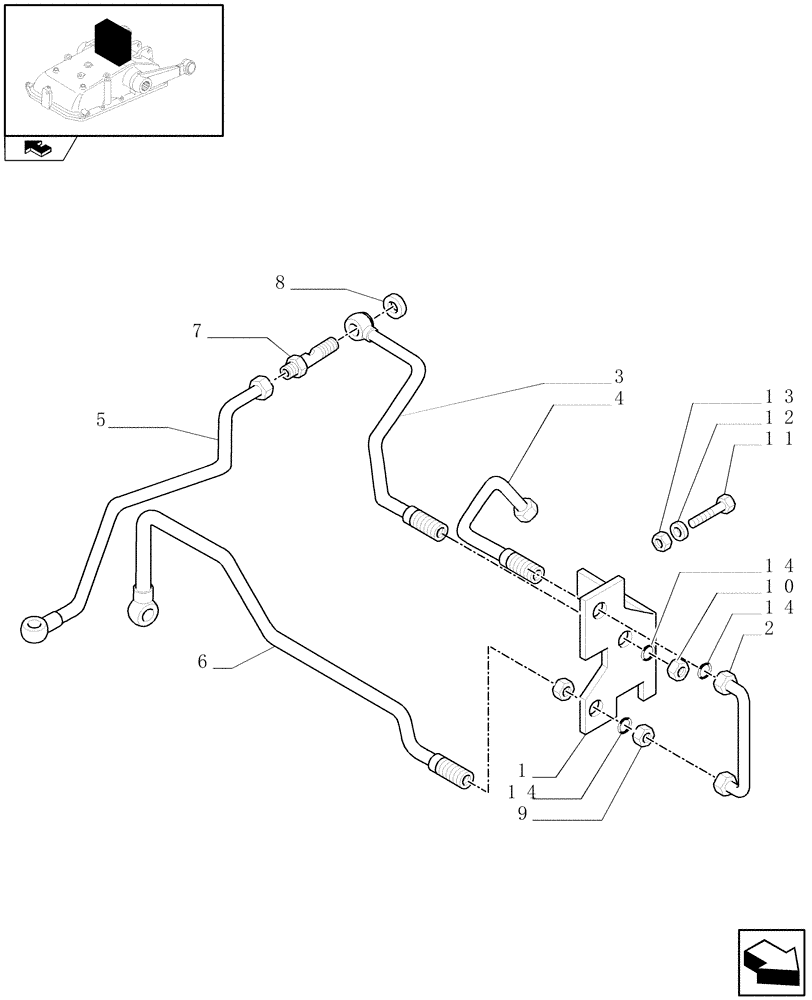

Запчасти Case IH FARMALL 95 (1.82.7/06) - MID-MOUNT VALVES HYDRAULIC CONNECTION - FOR HIGH CLEARANCE VERSION (VAR.335560) (07) - HYDRAULIC SYSTEM

1

87301895

SUPPORT

1шт.

2

87301888

HYD TUBE

1шт.

3

87644869

PIPE

Manifold Return

1шт.

4

87644870

PIPE

Manifold Pressure, Serial Range: -C6605

1шт.

4

84268363

PIPE

Manifold Pressure, Start Serial: D6605

1шт.

5

5095102

BRAKE LINE

Remote Valve Return

1шт.

6

87644871

PIPE

Manifold Delivery

1шт.

7

87640345

HYD CONNECTOR,M22 x 1.5 x M22 x 1.5

1шт.

8

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

9

5092958

BHD LOCK NUT,1" 1/4 UNF

6шт.

10

5092959

NUT

1шт.

11

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

12

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

13

16100821

NUT,M8, Cl 10

1шт.

14

14453380

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

3шт.
