Запчасти Case IH FARMALL 95 (1.82.7/05) - MID-MOUNT VALVES HYDRAULIC CONNECTION FOR REMOTES WITH FLOW CONTROL (VAR.336560) (07) - HYDRAULIC SYSTEM

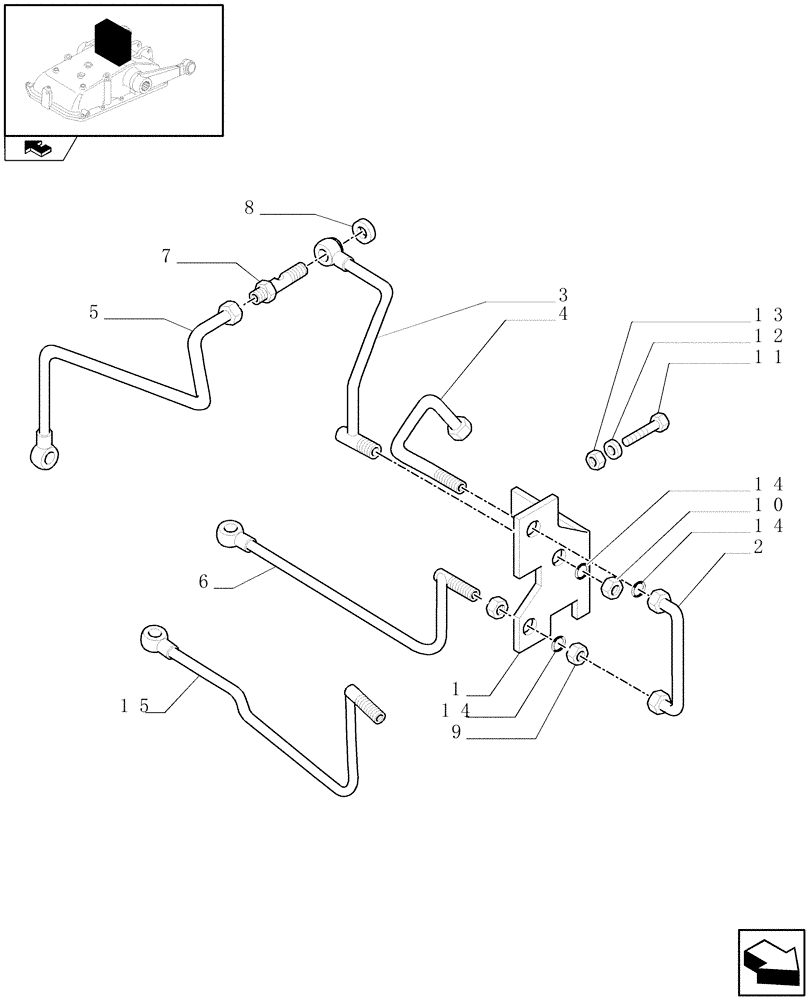

Схема запчастей Case IH FARMALL 95 - (1.82.7/05) - MID-MOUNT VALVES HYDRAULIC CONNECTION FOR REMOTES WITH FLOW CONTROL (VAR.336560) (07) - HYDRAULIC SYSTEM
7
4
15
9
14
14
home
1
14
8
13
2
12
5
11
6
3
10

Артикул

Название

Примечание

Количество

1

5093775

SUPPORT

1шт.

2

5093770

PIPE

1шт.

3

87644862

PIPE

Manifold Return

1шт.

4

87644866

PIPE

Manifold Pressure, Serial Range: -C6570

1шт.

4

84250670

PIPE

, Start Serial: D6570

1шт.

5

87391316

TUBE

Remote Valve Return

1шт.

6

87644863

PIPE

Manifold Delivery, Serial Range: -C6300

1шт.

7

87640345

HYD CONNECTOR,M22 x 1.5 x M22 x 1.5

1шт.

8

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

9

5092958

BHD LOCK NUT,1" 1/4 UNF

6шт.

10

5092959

NUT

1шт.

11

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

12

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

13

16100821

NUT,M8, Cl 10

1шт.

14

14453380

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

3шт.

15

84178766

PIPE

, Start Serial: D6300

1шт.

Выбрано товаров: 16
