Запчасти Case IH FARMALL 95 (1.82.7/04) - MID-MOUNT VALVES HYDRAULIC CONNECTION (VAR.335560) (07) - HYDRAULIC SYSTEM

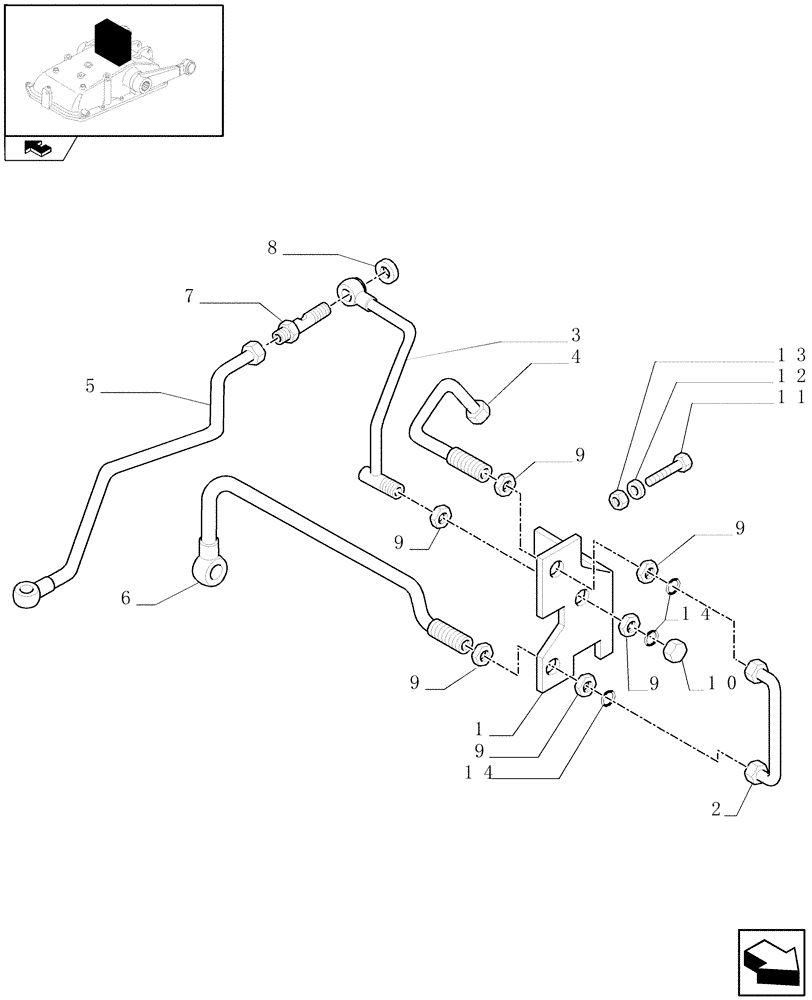

Схема запчастей Case IH FARMALL 95 - (1.82.7/04) - MID-MOUNT VALVES HYDRAULIC CONNECTION (VAR.335560) (07) - HYDRAULIC SYSTEM
9
3
9
9
9
2
5
10
9
13
9
1
14
4
6
8
14
home
11
7
12

Артикул

Название

Примечание

Количество

1

5093775

SUPPORT

1шт.

2

5093770

PIPE

1шт.

3

87644862

PIPE

Manifold Return

1шт.

4

87644866

PIPE

Manifold Pressure, Serial Range: -C6570

1шт.

4

84250670

PIPE

, Start Serial: D6570

1шт.

5

5095102

BRAKE LINE

Remote Valve Return

1шт.

6

87649566

TUBE

Manifold Delivery

1шт.

7

87640345

HYD CONNECTOR,M22 x 1.5 x M22 x 1.5

1шт.

8

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

9

5092958

BHD LOCK NUT,1" 1/4 UNF

6шт.

10

5092959

NUT

1шт.

11

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

12

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

13

16100821

NUT,M8, Cl 10

1шт.

14

14453380

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

3шт.

Выбрано товаров: 15
