(41.216.AV[07]) - VAR - 334187, 334190, 392315 - HYDRAULIC STEERING, LINE, STEERING CYLINDER, SUPPORT, CAB, W/O CAB

Запчасти Case IH FARMALL 90C (41.216.AV[07]) - VAR - 334187, 334190, 392315 - HYDRAULIC STEERING, LINE, STEERING CYLINDER, SUPPORT, CAB, W/O CAB (41) - STEERING

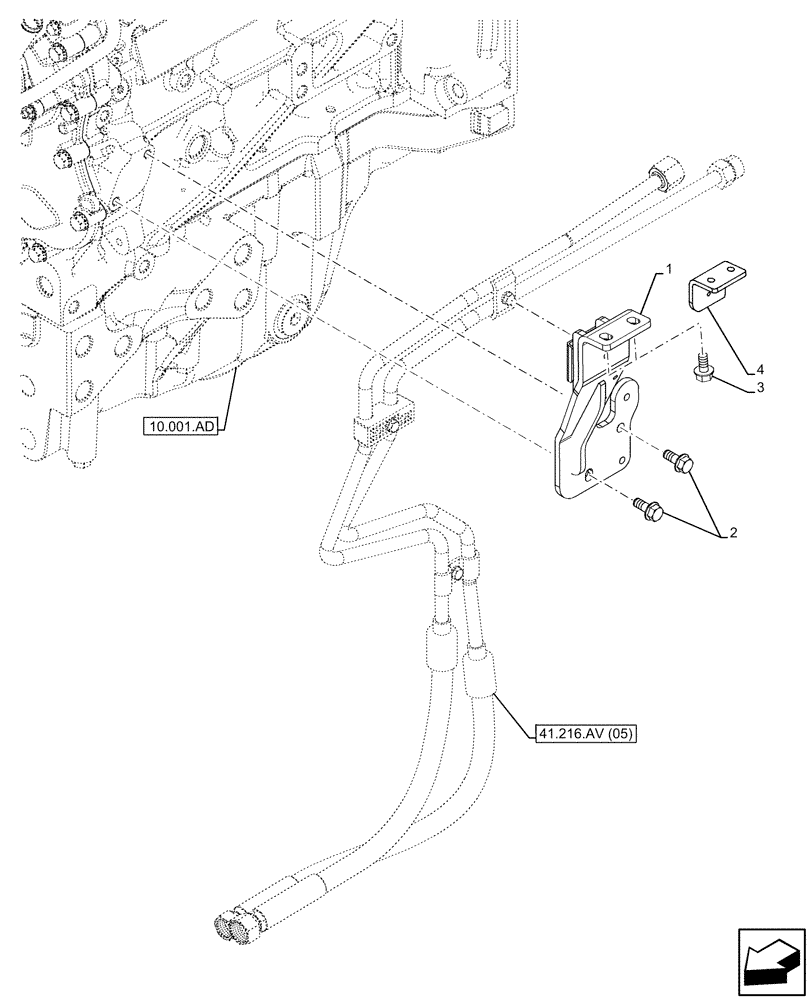

Схема запчастей Case IH FARMALL 90C - (41.216.AV[07]) - VAR - 334187, 334190, 392315 - HYDRAULIC STEERING, LINE, STEERING CYLINDER, SUPPORT, CAB, W/O CAB (41) - STEERING
41.216.av (05)
1
4
3
2
10.001.ad
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84603089

BRACKET

1шт.

2

16287134

FLANGE BOLT,Hex, M8 x 20mm, Cl 10.9

M8 x 20mm 10.9 DAC

2шт.

3

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

2шт.

4

47397980

SUPPORT

1шт.

Выбрано товаров: 4
