Запчасти Case IH FARMALL 90C (82.300.AX[06]) - VAR - 336740 - LOADER BUCKET, QUICK COUPLER, W/O SELF-LEVELING (82) - FRONT LOADER & BUCKET

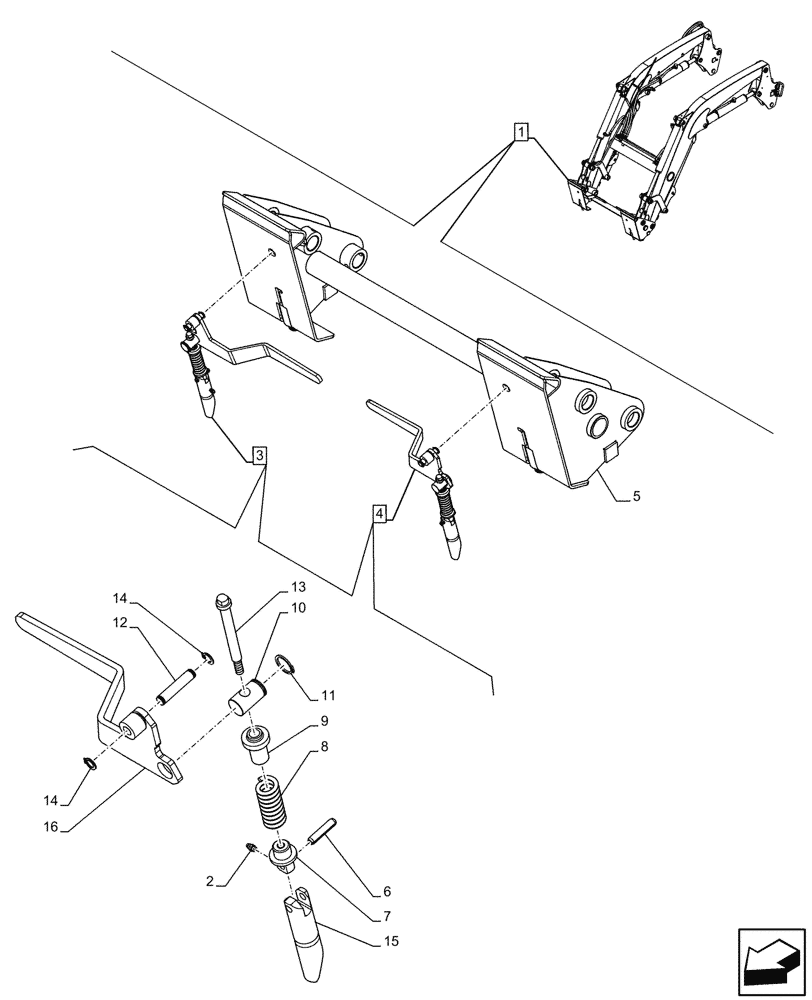

Схема запчастей Case IH FARMALL 90C - (82.300.AX[06]) - VAR - 336740 - LOADER BUCKET, QUICK COUPLER, W/O SELF-LEVELING (82) - FRONT LOADER & BUCKET
7
5
11
13
14
3
14
15
6
2
16
12
9
10
4
1
8

Артикул

Название

Примечание

Количество

1

47589346

LOADER

ASSY, Incl 2 - 16

1шт.

See also Loader Components in Figure 35.701.AX (05), 35.701.CB (07), 35.723.AA (07), 35.423.AB (05), 82.100.AA (05), 82.100.AF (09), 82.100.AF (10), 82.100.BG (05), 82.300.AB (05), 82.300.AY (05), 90.108.AB (10), 90.108.AC (28)

1шт.

SSL Tool Attach

1шт.

2

13407211

LUBE NIPPLE,M10 x 1

2шт.

3

NS

NOT SERVICED

ASSY, Lever RH, Incl 2, 6-16

1шт.

4

NS

NOT SERVICED

ASSY, Lever LH, Incl 2, 6-16

1шт.

5

84406180

QUICK-HITCH

1шт.

6

84406182

SPLIT PIN/SAFETY PIN

2шт.

7

84406183

GUIDE BUSHING

2шт.

8

86610167

SPRING,Compression, 35.15mm OD x 101.6mm L

2шт.

9

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

2шт.

10

84406184

PIN

2шт.

11

84408820

SNAP RING,M25, Ext

2шт.

12

84406185

PIN

2шт.

13

86506112

12 PT SCREW,3/8" - 16 x 5" L

2шт.

14

11066176

SNAP RING,M13, Ext

4шт.

15

86575348

PIN,31.75mm x 142mm L

2шт.

16

84406181

LEVER

RH

1шт.

16

84408819

LEVER

LH

1шт.

Выбрано товаров: 19
