Запчасти Case IH FARMALL 90C (82.300.AX[02]) - VAR - 336734 - LOADER BUCKET, QUICK COUPLER, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET

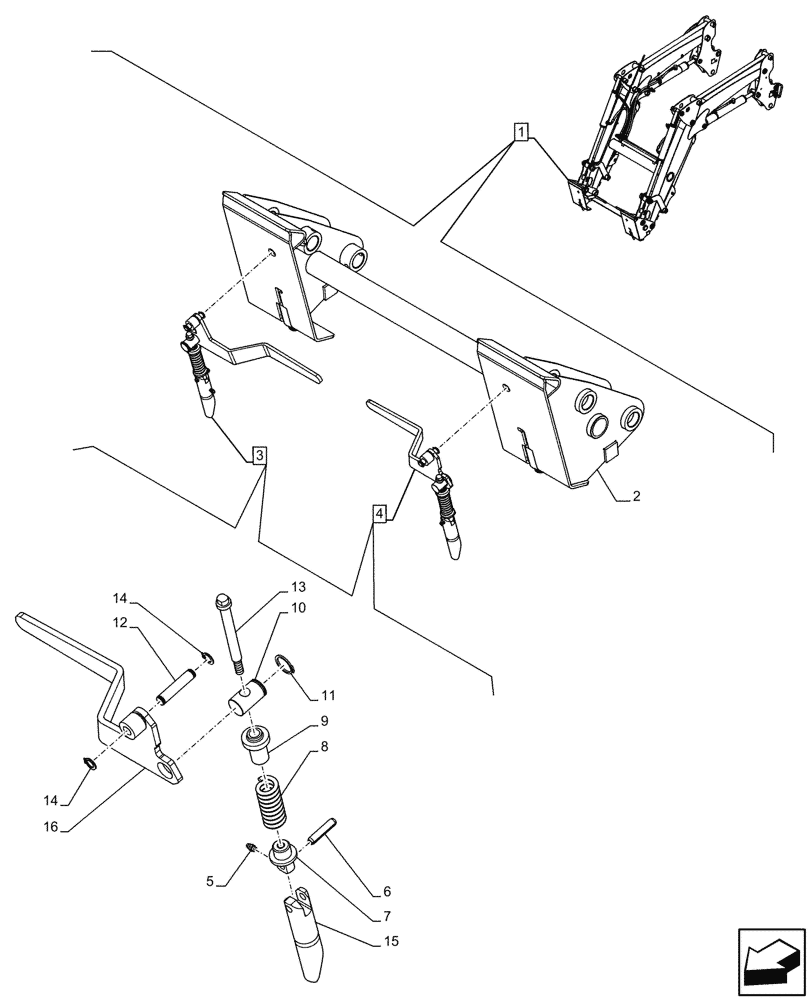

Схема запчастей Case IH FARMALL 90C - (82.300.AX[02]) - VAR - 336734 - LOADER BUCKET, QUICK COUPLER, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET
1
3
2
12
11
7
9
14
10
5
16
8
4
6
13
15
14

Артикул

Название

Примечание

Количество

1

84321725

LOADER

ASSY, Incl 2 - 16

1шт.

See also Arm Loader Components in Figure 35.701.AX (01), 35.701.CB (01), 35.723.AA (01), 35.723.AB (01), 82.100.AA (01), 82.100.AF (03), 82.100.AF (04), 82.100.BG (02), 82.300.AB (01), 82.300.AY (01), 90.108.AB (08), 90.108.AC (25)

1шт.

SSL Tool Attach.

1шт.

2

84406180

QUICK-HITCH

1шт.

3

NS

NOT SERVICED

ASSY, Lever RH, Incl 5 - 16

1шт.

4

NS

NOT SERVICED

ASSY, Lever LH, Incl 5 - 16

1шт.

5

13407211

LUBE NIPPLE,M10 x 1

1шт.

6

84406182

SPLIT PIN/SAFETY PIN

1шт.

7

84406183

GUIDE BUSHING

1шт.

8

86610167

SPRING,Compression, 35.15mm OD x 101.6mm L

1шт.

9

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

1шт.

10

84406184

PIN

1шт.

11

84408820

SNAP RING,M25, Ext

1шт.

12

84406185

PIN

1шт.

13

86506112

12 PT SCREW,3/8" - 16 x 5" L

1шт.

14

11066176

SNAP RING,M13, Ext

2шт.

15

86575348

PIN,31.75mm x 142mm L

1шт.

16

84406181

LEVER

RH

1шт.

16

84408819

LEVER

LH

1шт.

Выбрано товаров: 19
