Запчасти Case IH FARMALL 90C (82.100.BG[08]) - VAR - 336740, 336742 - LOADER ARM, PIN, W/ DIVERTER, W/O SELF-LEVELING (82) - FRONT LOADER & BUCKET

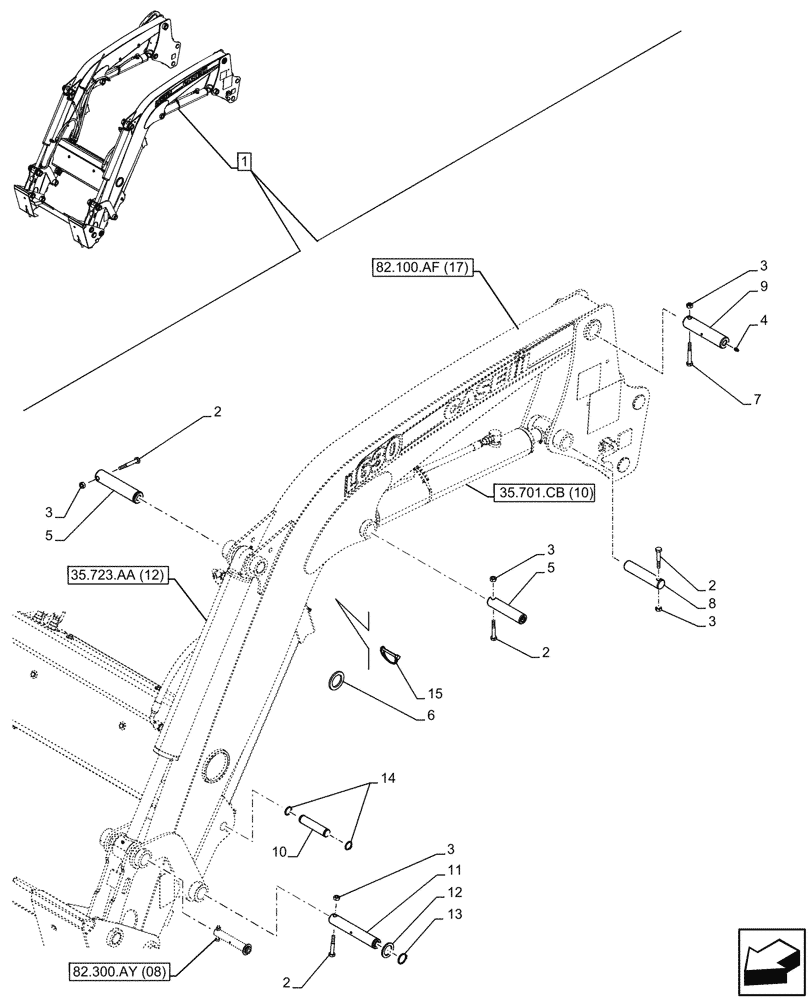

Схема запчастей Case IH FARMALL 90C - (82.100.BG[08]) - VAR - 336740, 336742 - LOADER ARM, PIN, W/ DIVERTER, W/O SELF-LEVELING (82) - FRONT LOADER & BUCKET
35.701.cb (10)
3
7
15
2
3
1
11
5
13
3
5
2
14
9
12
2
6
4
3
2
8
3
10
82.300.ay (08)
82.100.af (17)
35.723.aa (12)

Артикул

Название

Примечание

Количество

1

47696354

LOADER

ASSY, Incl 2 - 15

1шт.

See also Loader Components in Figure 35.701.AX (08), 35.701.CB (10), 35.723.AA (12), 35.723.AB (08), 35.723.AF (07), 55.415.AQ (08), 82.100.AA (08), 82.100.AF (17), 82.100.AF (18), 82.300.AB (08), 82.300.AX (13), 82.300.AY (08), 90.108.AB (15), 90.108.AC (35)

1шт.

SSL Tool Attach.

1шт.

1

47696335

LOADER

ASSY, Incl 2 - 15

1шт.

See also Loader Components in Figure 35.701.AX (08), 35.701.CB (10), 35.723.AA (12), 35.723.AB (08), 35.723.AF (07), 55.415.AQ (08), 82.100.AA (08), 82.100.AF (17), 82.100.AF (18), 82.300.AB (08), 82.300.AX (14), 82.300.AY (08), 90.108.AB (15), 90.108.AC (35)

1шт.

EU Tool Attach.

1шт.

2

86624979

BOLT,Hex, M10 x 75mm, Cl 10.9

8шт.

3

12574511

LOCK NUT,M10 x 1.25, Cl 8

10шт.

4

87588865

FITTING,M6 x 1 x 12mm L

2шт.

5

84575165

PIN

4шт.

6

84575168

SPACER,39mm OD x 1mm L

41.5mm OD x 1mm Thk

10шт.

6

84575169

SPACER,39mm OD x 1.5mm L

41.5mm OD x 1.5mm Thk

1шт.

6

84575170

SPACER,39mm OD x 2mm L

1шт.

7

1537277

BOLT,Hex, M10 x 1.5 x 85mm, Cl 10.9

2шт.

8

84575159

PIN

2шт.

9

84575167

PIN

2шт.

10

84405805

PIN

2шт.

11

84575162

PIN

2шт.

12

84406164

SPACER

2шт.

13

84406163

LOCKING RING

2шт.

14

84406126

LOCKING RING

4шт.

15

84406127

PIN

2шт.

Выбрано товаров: 22
