Запчасти Case IH FARMALL 90C (82.100.BG[07]) - VAR - 336744, 336746 - LOADER ARM, W/DIVERTER, PIN, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET

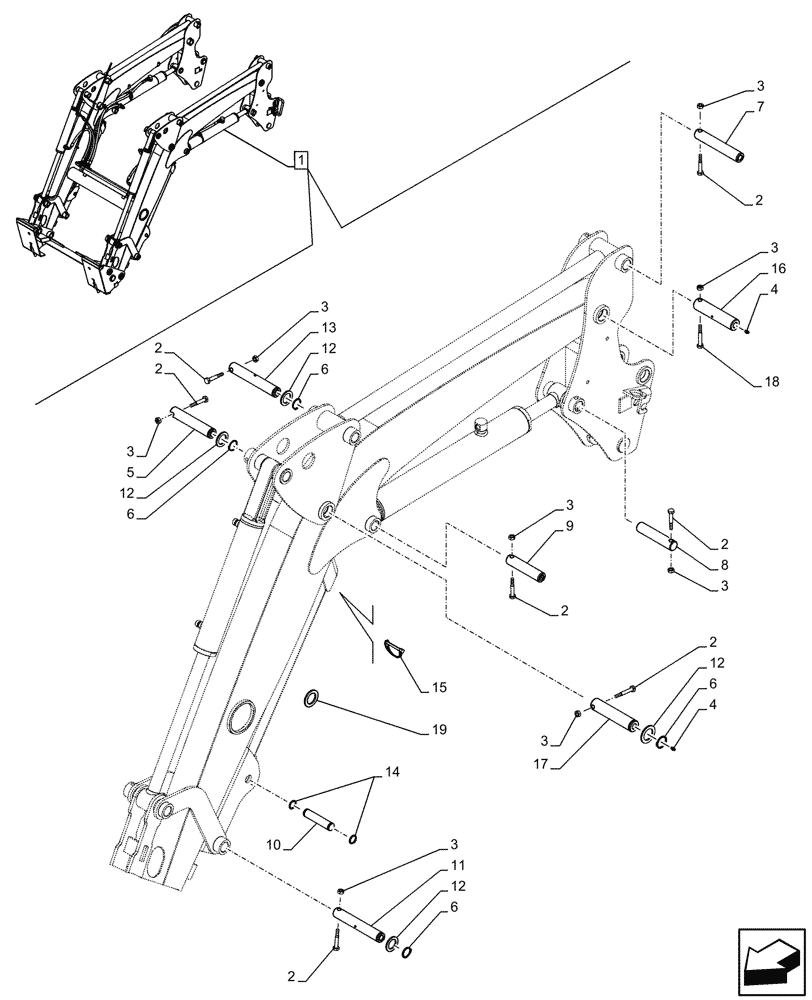

Схема запчастей Case IH FARMALL 90C - (82.100.BG[07]) - VAR - 336744, 336746 - LOADER ARM, W/DIVERTER, PIN, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET
2
3
3
9
17
2
2
8
11
1
19
13
16
3
6
12
3
3
6
14
4
3
3
12
12
6
15
10
3
2
2
12
7
18
4
2
2
6
5

Артикул

Название

Примечание

Количество

1

47696359

LOADER

ASSY, Incl 2 - 19

1шт.

See also Loader Components in Figure 35.701.AX (07), 35.701.CB (09), 35.723.AA (11), 35.723.AB (07), 35.723.AF (05), 55.415.AQ (06), 82.100.AA (07), 82.100.AF (15), 82.100.AF (16), 82.300.AB (07), 82.300.AX (11), 82.300.AY (07), 90.108.AB (14), 90.108.AC (33)

1шт.

SSL Tool Attach.

1шт.

1

47696344

LOADER

ASSY, Incl 2 - 19

1шт.

See also Loader Components in Figure 35.701.AX (07), 35.701.CB (09), 35.723.AA (11), 35.723.AB (07), 35.723.AF (05), 55.415.AQ (06), 82.100.AA (07), 82.100.AF (15), 82.100.AF (16), 82.300.AB (07), 82.300.AX (12), 82.300.AY (07), 90.108.AB (14), 90.108.AC (33)

1шт.

EU Tool Attach.

1шт.

2

86624979

BOLT,Hex, M10 x 75mm, Cl 10.9

14шт.

3

12574511

LOCK NUT,M10 x 1.25, Cl 8

14шт.

4

87588865

FITTING,M6 x 1 x 12mm L

4шт.

5

84575161

PIN

2шт.

6

84406163

LOCKING RING

8шт.

7

84406162

PIN

2шт.

8

84575159

PIN

4шт.

9

84575165

PIN

2шт.

10

84405805

PIN

2шт.

11

84575162

PIN

2шт.

12

84406164

SPACER

8шт.

13

84511099

PIN

2шт.

14

84406126

LOCKING RING

4шт.

15

84406127

PIN

2шт.

16

84575167

PIN

2шт.

17

84406161

PIN

2шт.

18

1537277

BOLT,Hex, M10 x 1.5 x 85mm, Cl 10.9

2шт.

19

84575168

SPACER,39mm OD x 1mm L

10шт.

19

84575169

SPACER,39mm OD x 1.5mm L

1шт.

19

84575170

SPACER,39mm OD x 2mm L

1шт.

Выбрано товаров: 26
