Запчасти Case IH FARMALL 90C (82.100.BG[06]) - VAR - 336744, 336746 - LOADER ARM, PIN, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET

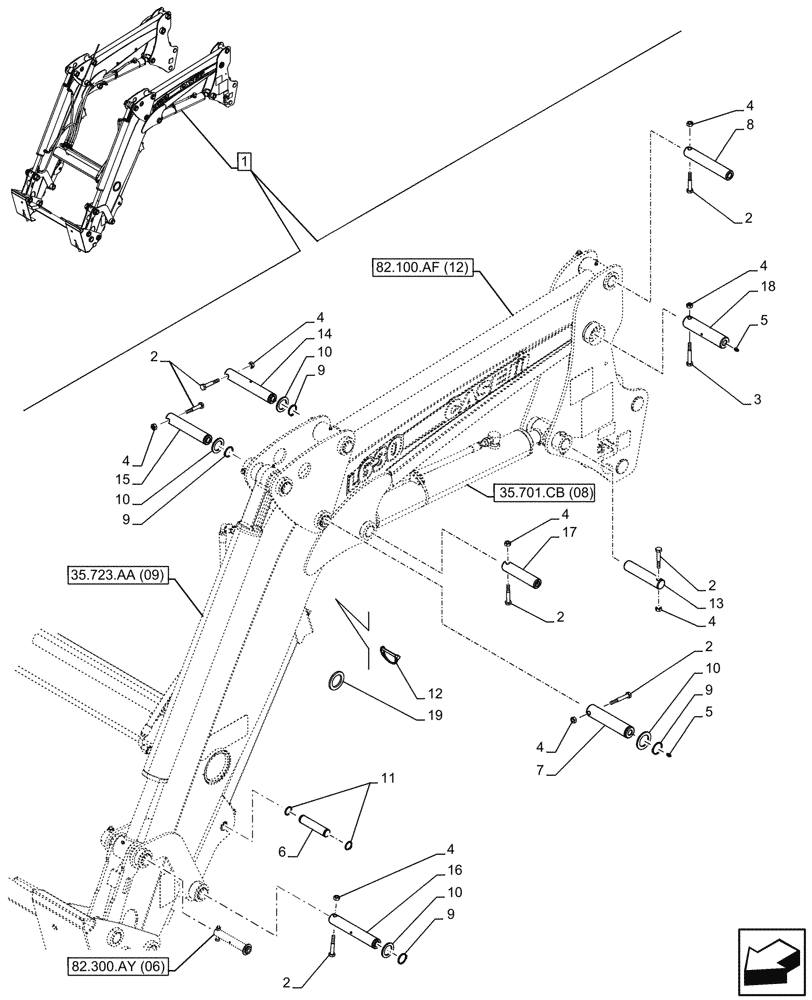

Схема запчастей Case IH FARMALL 90C - (82.100.BG[06]) - VAR - 336744, 336746 - LOADER ARM, PIN, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET
35.723.aa (09)
9
5
18
15
10
7
6
2
3
4
16
17
4
4
10
2
5
4
9
10
19
4
12
13
2
2
11
14
2
8
10
2
4
9
4
9
1
4
35.701.cb (08)
82.100.af (12)
82.300.ay (06)

Артикул

Название

Примечание

Количество

1

47589358

LOADER

ASSY, Incl 2 - 19

1шт.

See also Loader Components in Figure 35.701.AX (06), 35.701.CB (08), 35.723.AA (09), 35.723.AB (06), 82.100.AA (06), 82.100.AF (12), 82.100.AF (13), 82.300.AB (06), 82.300.AX (09), 82.300.AY (06), 90.108.AB (12), 90.108.AC (32)

1шт.

SSL Tool Attach

1шт.

1

47565458

LOADER

ASSY, Incl 2 - 19

1шт.

See also Loader Components in Figure 35.701.AX (06), 35.701.CB (08), 35.723.AA (09), 35.723.AB (06), 82.100.AA (06), 82.100.AF (12), 82.100.AF (13), 82.300.AB (06), 82.300.AX (10), 82.300.AY (06), 90.108.AB (12), 90.108.AC (32)

1шт.

EU Tool Attach

1шт.

2

86624979

BOLT,Hex, M10 x 75mm, Cl 10.9

14шт.

3

1537277

BOLT,Hex, M10 x 1.5 x 85mm, Cl 10.9

2шт.

4

12574511

LOCK NUT,M10 x 1.25, Cl 8

16шт.

5

87588865

FITTING,M6 x 1 x 12mm L

4шт.

6

84405805

PIN

2шт.

7

84406161

PIN

2шт.

8

84406162

PIN

2шт.

9

84406163

LOCKING RING

8шт.

10

84406164

SPACER

8шт.

11

84406126

LOCKING RING

4шт.

12

84406127

PIN

2шт.

13

84575159

PIN

2шт.

14

84511099

PIN

2шт.

15

84575161

PIN

2шт.

16

84575162

PIN

2шт.

17

84575165

PIN

2шт.

18

84575167

PIN

2шт.

19

84575168

SPACER,39mm OD x 1mm L

39.5mm OD x 1mm L

10шт.

19

84575169

SPACER,39mm OD x 1.5mm L

39.5mm OD x 1.5mm L

1шт.

19

84575170

SPACER,39mm OD x 2mm L

39.5mm OD x 2mm L

1шт.

Выбрано товаров: 26
