Запчасти Case IH FARMALL 90C (82.100.BG[04]) - VAR - 336734, 336736 - LOADER ARM, W/DIVERTER, PIN, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET

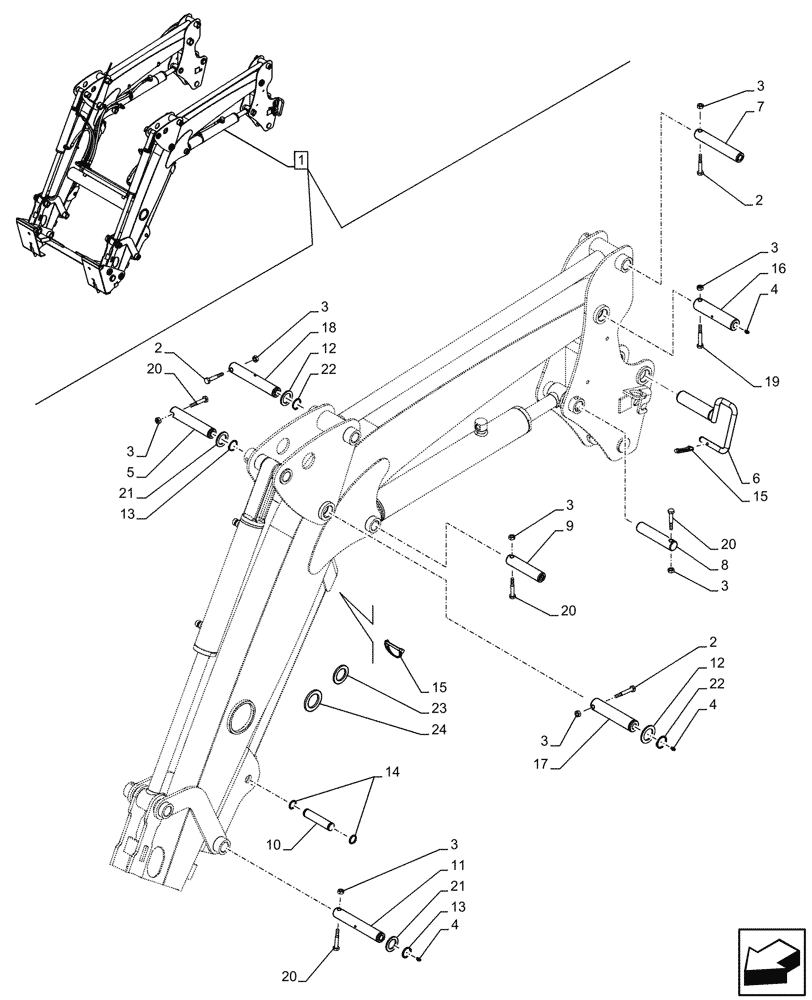

Схема запчастей Case IH FARMALL 90C - (82.100.BG[04]) - VAR - 336734, 336736 - LOADER ARM, W/DIVERTER, PIN, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET
5
16
13
3
4
21
10
3
4
3
8
2
1
20
3
6
14
22
22
15
3
3
3
20
13
7
4
18
20
21
23
15
17
20
12
19
11
24
2
9
3
12
2

Артикул

Название

Примечание

Количество

1

47649265

LOADER

ASSY, Incl 2 - 24

1шт.

See also Loader Components in Figure 35.701.AX (04), 35.701.CB (05), 35.723.AA (06), 35.723.AB (04), 35.723.AF (03), 35.723.AF (04), 55.415.AQ (04), 82.100.AA (04), 82.100.AF (07), 82.100.AF (08), 82.300.AB (04), 82.300.AX (05), 82.300.AY (04), 90.108.AB (07), 90.108.AC (27)

1шт.

EU Tool Attach.

1шт.

1

47649271

LOADER

ASSY, Incl 2 - 24

1шт.

See also Loader Components in Figure 35.701.AX (04), 35.701.CB (05), 35.723.AA (06), 35.723.AB (04), 35.723.AF (03), 35.723.AF (04), 55.415.AQ (04), 82.100.AA (04), 82.100.AF (07), 82.100.AF (08), 82.300.AB (04), 82.300.AX (08, 82.300.AY (04), 90.108.AB (07), 90.108.AC (27)

1шт.

SSL Tool Attach.

1шт.

2

86624979

BOLT,Hex, M10 x 75mm, Cl 10.9

6шт.

3

12574511

LOCK NUT,M10 x 1.25, Cl 8

14шт.

4

87588865

FITTING,M6 x 1 x 12mm L

6шт.

5

84406160

PIN

2шт.

6

84393576

PIN

2шт.

7

84406162

PIN

2шт.

8

84393585

PIN

2шт.

9

84393753

PIN

2шт.

10

84405805

PIN

2шт.

11

84406123

PIN

2шт.

12

84406164

SPACER

4шт.

13

84406125

LOCKING RING

4шт.

14

84406126

LOCKING RING

4шт.

15

84406127

PIN

4шт.

16

84393572

PIN,38mm OD x 167.5mm L

2шт.

17

84406161

PIN

2шт.

18

84511099

PIN

2шт.

19

1537277

BOLT,Hex, M10 x 1.5 x 85mm, Cl 10.9

2шт.

20

1185622

BOLT,Hex, M10 x 65, 10.9

6шт.

21

84406124

SPACER

4шт.

22

84406163

LOCKING RING

4шт.

23

47411904

SHIM,mm ID x 33.5mm OD x 1mm Thk

5шт.

23

47411907

SHIM,mm ID x 33.5mm OD x 1.5mm Thk

1шт.

23

47411909

SHIM,mm ID x 33.5mm OD x 2mm Thk

1шт.

24

84575168

SPACER,39mm OD x 1mm L

5шт.

24

84575169

SPACER,39mm OD x 1.5mm L

1шт.

24

84575170

SPACER,39mm OD x 2mm L

1шт.

Выбрано товаров: 33
