Запчасти Case IH FARMALL 90C (82.100.AF[14]) - VAR - 336744, 336746 - LOADER SUPPORT, W/ SELF-LEVELING, COMPONENTS (82) - FRONT LOADER & BUCKET

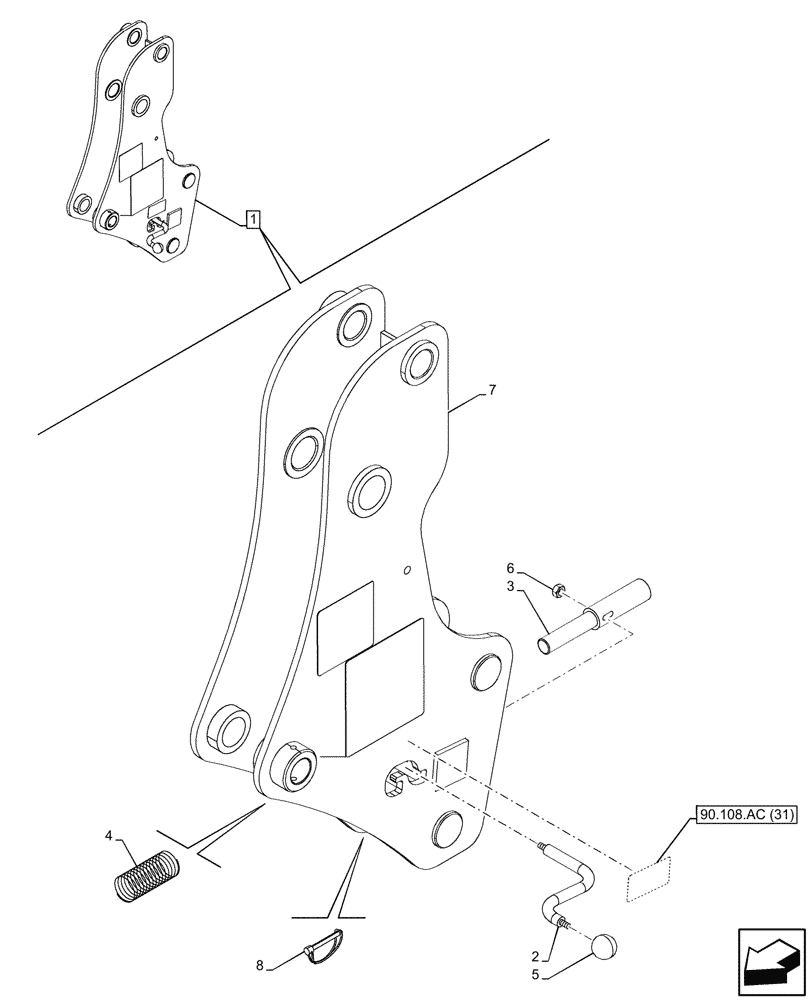

Схема запчастей Case IH FARMALL 90C - (82.100.AF[14]) - VAR - 336744, 336746 - LOADER SUPPORT, W/ SELF-LEVELING, COMPONENTS (82) - FRONT LOADER & BUCKET
90.108.ac (31)
5
4
8
1
7
6
2
3

Артикул

Название

Примечание

Количество

1

47565443

SUPPORT

ASSY, RH, Incl 2 - 8

1шт.

See also Mobile Frame Components in Figure 90.108.AC (31)

1шт.

1

47565445

SUPPORT

ASSY, LH, Incl 2 - 8

1шт.

See also Mobile Frame Components in Figure 90.108.AC (31)

1шт.

2

47562316

LEVER

1шт.

3

47562297

PIN

1шт.

4

47552279

SPRING

1шт.

5

47552280

KNOB

1шт.

6

12574511

LOCK NUT,M10 x 1.25, Cl 8

1шт.

7

NSS

NOT SOLD SEPARAT

Frame, RH, Incl in 1

1шт.

8

84406127

PIN

1шт.

Выбрано товаров: 11
