Запчасти Case IH FARMALL 90C (82.100.AF[09]) - VAR - 336740, 336742 - LOADER ARM, ARM/LIFTING DEVICE, W/O SELF-LEVELING (82) - FRONT LOADER & BUCKET

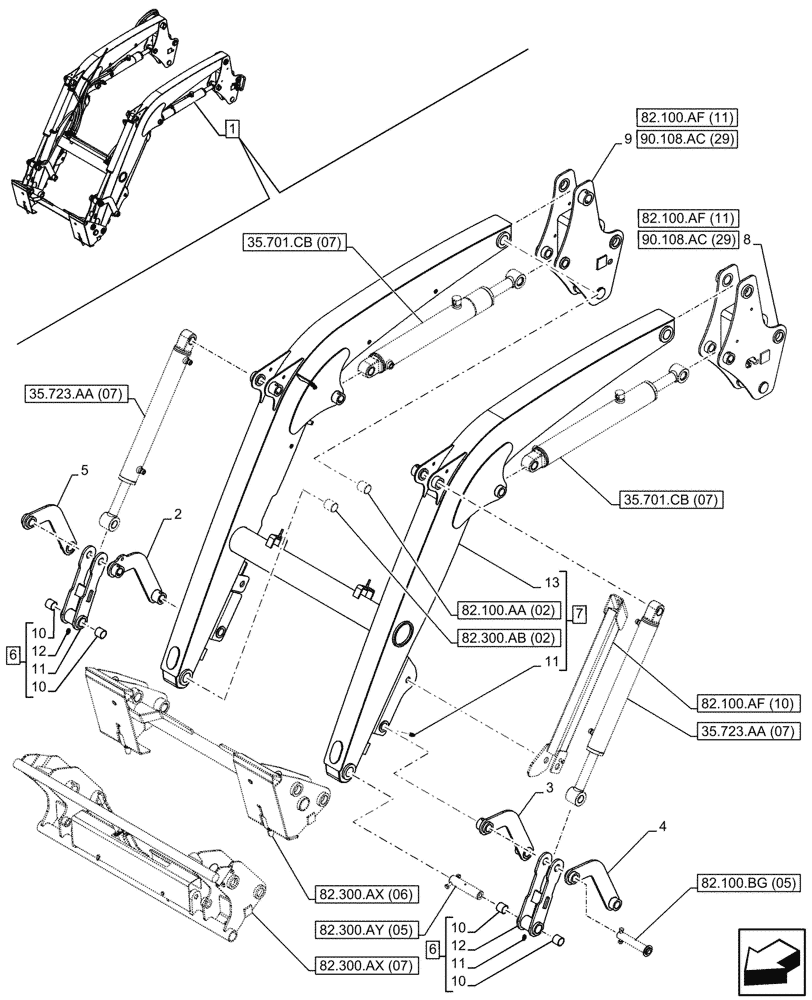

Схема запчастей Case IH FARMALL 90C - (82.100.AF[09]) - VAR - 336740, 336742 - LOADER ARM, ARM/LIFTING DEVICE, W/O SELF-LEVELING (82) - FRONT LOADER & BUCKET
82.300.ay (05)
7
6
3
11
10
5
2
13
1
8
10
12
10
4
12
9
11
11
10
6
1
82.100.bg (05)
35.701.cb (07)
35.701.cb (07)
82.100.aa (02)
82.300.ax (06)
35.723.aa (07)
35.723.aa (07)
82.300.ax (07)
82.300.ab (02)
90.108.ac (29)
90.108.ac (29)
82.100.af (11)
82.100.af (11)
82.100.af (10)

Артикул

Название

Примечание

Количество

1

47589346

LOADER

ASSY, Incl 2 - 14

1шт.

See also Loader Components in Figure 35.701.AX (05), 35.701.CB (07), 35.723.AA (07), 35.423.AB (05), 82.100.AA (05), 82.100.AF (10), 82.100.BG (05), 82.300.AB (05), 82.300.AX (06), 82.300.AY (05), 90.108.AB (10), 90.108.AC (28)

1шт.

SSL Tool Attach

1шт.

1

47562346

LOADER

ASSY, Incl 2 - 14

1шт.

See also Loader Components in Figure 35.701.AX (05), 35.701.CB (07), 35.723.AA (07), 35.423.AB (05), 82.100.AA (05), 82.100.AF (10), 82.100.BG (05), 82.300.AB (05), 82.300.AX (07), 82.300.AY (05), 90.108.AB (10), 90.108.AC (28)

1шт.

EU Tool Attach

1шт.

2

84602307

LEVER

RH, Inner

1шт.

3

84602322

LEVER

LH, Inner

1шт.

4

84602315

LEVER

LH, Outer

1шт.

5

84602301

LEVER

RH, Outer

1шт.

6

84602335

CONNECTING LINK

ASSY, Incl 10 (Qty 2), 11 (Qty 1), 12 (Qty 1)

2шт.

7

84602330

LOADER BOOM

ASSY, Incl 13, 11 (Qty 2)

1шт.

8

47552278

SUPPORT

LH, ASSY

1шт.

9

47552277

SUPPORT

RH, ASSY

1шт.

10

81901809

BUSHING,38.25mm ID x 43.03mm OD x 34.92mm L

4шт.

11

87588865

FITTING,M6 x 1 x 12mm L

M6 x 1 x 12mm

4шт.

12

NSS

NOT SOLD SEPARAT

Double Rod, Incl in 6

2шт.

13

NSS

NOT SOLD SEPARAT

Arm, Incl in 7

1шт.

Выбрано товаров: 18
