Запчасти Case IH FARMALL 90C (82.100.AF[07]) - VAR - 336734, 336736 - LOADER ARM, ARM/LIFTING DEVICE, W/DIVERTER, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET

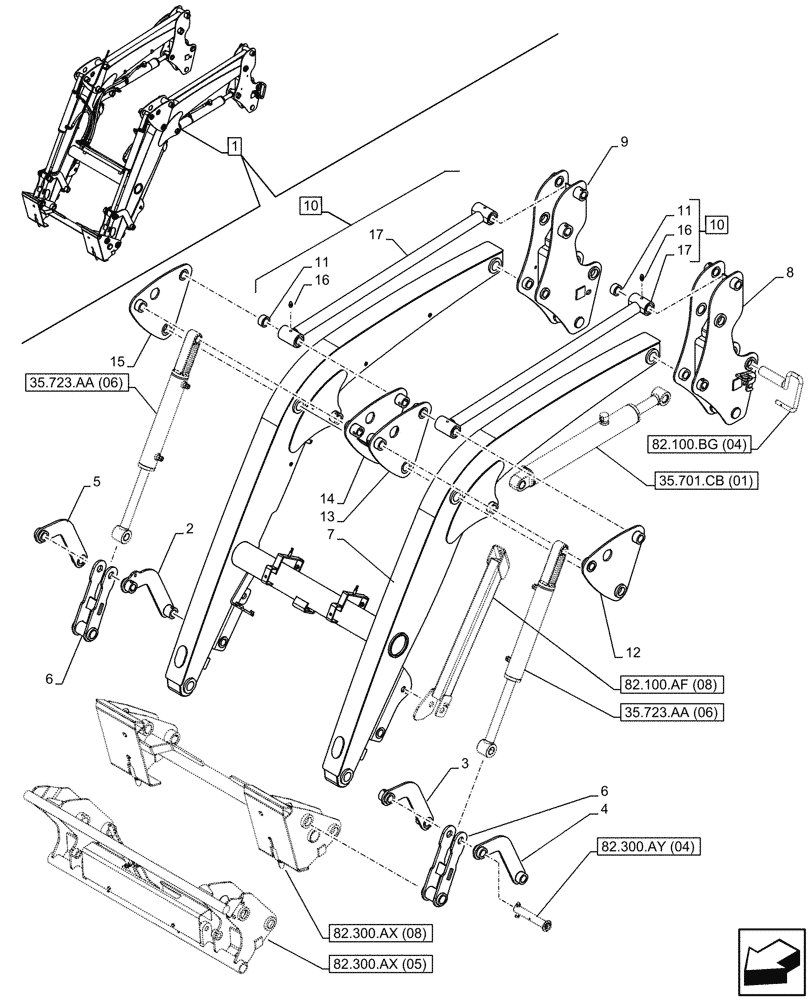

Схема запчастей Case IH FARMALL 90C - (82.100.AF[07]) - VAR - 336734, 336736 - LOADER ARM, ARM/LIFTING DEVICE, W/DIVERTER, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET
35.701.cb (01)
15
3
13
11
5
17
6
11
8
17
14
10
4
2
10
1
6
16
12
16
9
7
82.300.ax (05)
35.723.aa (06)
35.723.aa (06)
82.300.ay (04)
82.300.ax (08)
82.100.af (08)
82.100.bg (04)

Артикул

Название

Примечание

Количество

1

47649265

LOADER

ASSY, Incl 2 - 17

1шт.

See also Loader Components in Figure 35.701.AX (04), 35.701.CB (05), 35.723.AA (06), 35.723.AB (04), 35.723.AF (03), 35.723.AF (04), 55.415.AQ (04), 82.100.AA (04), 82.100.AF (08), 82.100.BG (04), 82.300.AB (04), 82.300.AX (05), 82.300.AY (04), 90.108.AB (07), 90.108.AC (27)

1шт.

EU Tool Attach.

1шт.

1

47649271

LOADER

ASSY, Incl 2 - 17

1шт.

See also Loader Components in Figure 35.701.AX (04), 35.701.CB (05), 35.723.AA (06), 35.723.AB (04), 35.723.AF (03), 35.723.AF (04), 55.415.AQ (04), 82.100.AA (04), 82.100.AF (08), 82.100.BG (04), 82.300.AB (04), 82.300.AX (08), 82.300.AY (04), 90.108.AB (07), 90.108.AC (27)

1шт.

SSL Tool Attach.

1шт.

2

84393710

LEVER

RH, Inner

1шт.

3

84393715

LEVER

LH, Inner

1шт.

4

84393699

LEVER

LH, Outer

1шт.

5

84393693

LEVER

RH, Outer

1шт.

6

84393751

ROD

2шт.

7

47676339

LOADER ARM

1шт.

8

84393661

SUPPORT

LH

1шт.

9

84393659

SUPPORT

RH

1шт.

10

84422281

ROD

ASSY, Incl 11, 16, 17

2шт.

11

81901809

BUSHING,38.25mm ID x 43.03mm OD x 34.92mm L

4шт.

12

84393669

LEVER

LH, Outer

1шт.

13

84393677

LEVER

LH, Inner

1шт.

14

84393683

LEVER

RH, Inner

1шт.

15

84393666

LEVER

RH, Outer

1шт.

16

87588865

FITTING,M6 x 1 x 12mm L

2шт.

17

NSS

NOT SOLD SEPARAT

Rod, Incl in 10

1шт.

Выбрано товаров: 22
