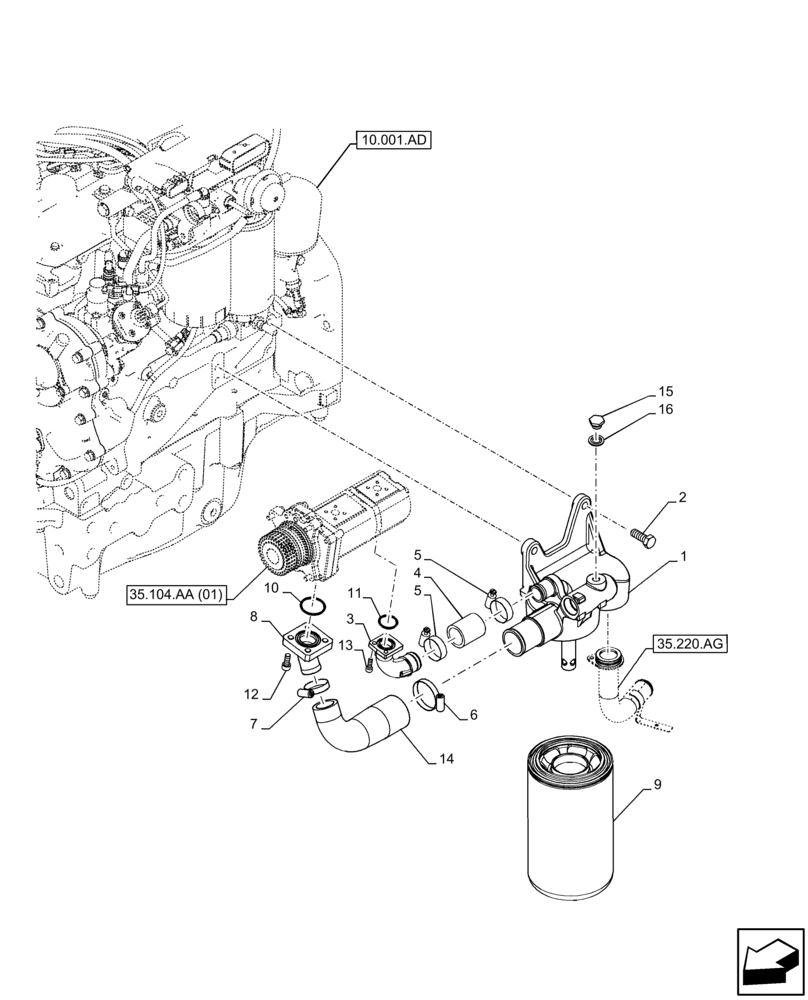

Запчасти Case IH FARMALL 90C (35.220.AE) - VAR - 330581, 337323, 390328, 743559, 743560, 744580, 744581, 744990 - HYDRAULIC OIL FILTER (35) - HYDRAULIC SYSTEMS

1

84581495

SUPPORT

1шт.

2

11112624

BOLT,M12 x 35, 8.8, Full Thd

2шт.

3

84581955

HYDRAULIC MANIFOLD

1шт.

4

84581957

SLEEVE,32mm ID x 42mm OD x 50mm L

1шт.

5

82039348

HOSE CLAMP,40mm - 60mm

2шт.

6

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

1шт.

7

13001690

HOSE CLAMP,Worm Gear, 30mm/45mm x 9mm W, CST, ZND

1шт.

8

84348891

TUBE

1шт.

9

84581942

HYDRAULIC OIL FILTER,135mm OD x 244mm L, M55 x 1.5, 50 Microns

Lifter/Suction

1шт.

10

14458380

O-RING,0.103" Thk x 1.299" ID, -125, Cl 5, 75 Duro

1шт.

11

14457780

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

1шт.

12

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

4шт.

13

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

3шт.

14

84348893

SLEEVE

1шт.

15

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

16

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.
