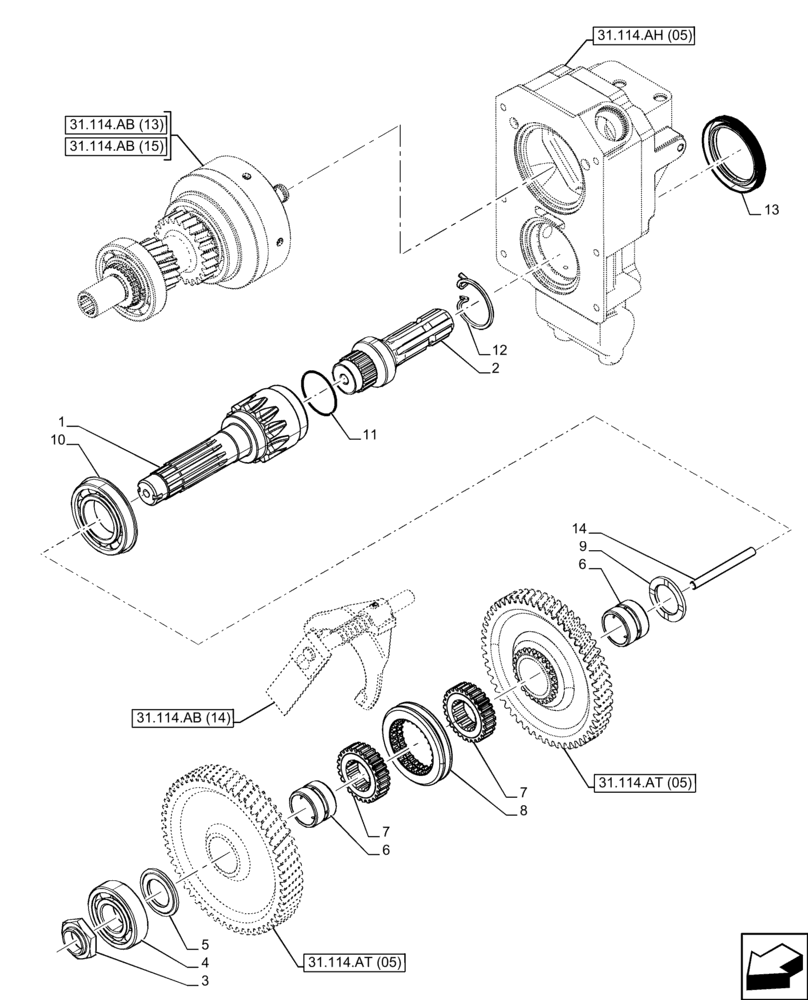

Запчасти Case IH FARMALL 90C (31.114.AF[05]) - VAR - 743594 - PTO 540/1000 -540E RPM, OUTPUT SHAFT, POWERSHUTTLE (31) - IMPLEMENT POWER TAKE OFF

1

84348345

SHAFT

232.5 mm PTO Drive Gear

1шт.

2

47616169

SHAFT

PTO 540 RPM

1шт.

3

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

4

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

D35 x 80 x 21mm

1шт.

5

5168181

THRUST WASHER,35.1mm ID x 50mm OD x 4mm Thk

1шт.

6

84328238

BUSHING,38mm ID x 45.95mm OD x 33mm L

2шт.

7

5130550

PINION,28T / 12T

1шт.

8

5130551

SLEEVE,70mm ID x 100mm OD x 20mm L

1шт.

9

5124675

THRUST WASHER,38.1mm ID x 56mm OD x 4mm Thk

1шт.

10

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

11

14459880

O-RING,56.82mm ID x 2.62" Width

1шт.

12

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

13

84357623

SEAL,67.9mm ID x 95mm OD x 12mm Thk

70 x 95 x 12mm

1шт.

14

84339043

PIN,12mm OD x 170mm L

1шт.
