Запчасти Case IH FARMALL 90C (31.110.AI[03]) - VAR - 743565 - PTO 540 RPM, COVER, POWERSHUTTLE (31) - IMPLEMENT POWER TAKE OFF

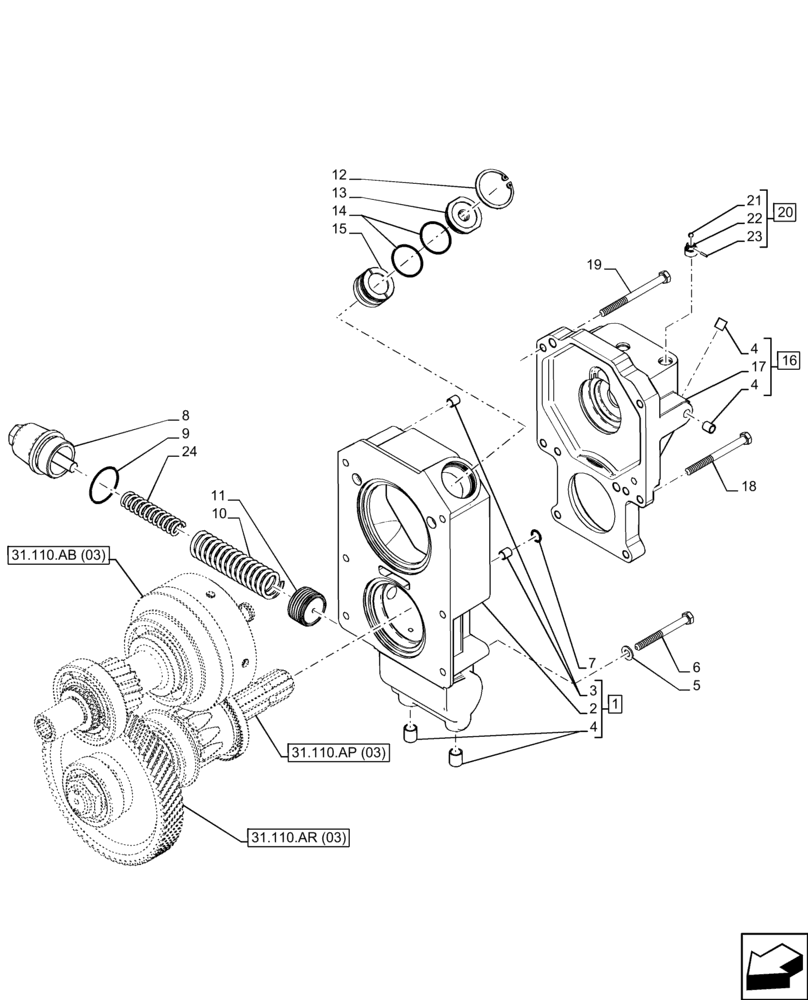

Схема запчастей Case IH FARMALL 90C - (31.110.AI[03]) - VAR - 743565 - PTO 540 RPM, COVER, POWERSHUTTLE (31) - IMPLEMENT POWER TAKE OFF
22
4
12
2
18
21
7
17
15
14
31.110.ar (03)
1
5
24
16
19
13
3
9
8
31.110.ab (03)
20
4
11
23
10
31.110.ap (03)
6
4

Артикул

Название

Примечание

Количество

1

47404797

COVER

ASSY, Incl 2, 3, 4 (Qty 2)

1шт.

2

NSS

NOT SOLD SEPARAT

PTO Cover, Incl in 1

1шт.

3

10839710

DOWEL,M10 x 15.00mm

2шт.

4

14536590

PLUG,10.00mm Dia x 19.80mm L (Not Threaded)

4шт.

4

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

2шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

6

16044821

SCREW,Hex, M8 x 80mm, Cl 8.8

2шт.

7

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

8

84424759

CAP

1шт.

9

14458881

O-RING,1.612" ID x 0.103" Width

1шт.

10

5137481

SPRING,Compression, 32mm OD x 122mm L

1шт.

11

5137480

PISTON,40mm OD

1шт.

12

11060176

CIRCLIP,M45 x 1.75mm Thk, Int

1шт.

13

84344468

BRAKE SHOE

1шт.

14

14458480

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

2шт.

15

84344461

BRAKE SHOE

1шт.

16

84574410

COVER

ASSY, Incl 4 (Qty 2), 17

1шт.

17

NSS

NOT SOLD SEPARAT

PTO Cover, Incl in 16

1шт.

18

16045021

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

19

16046121

BOLT,Hex, M8 x 100mm, Cl 8.8

2шт.

20

47646393

RESTRICTOR

ASSY, Incl 21 - 23

1шт.

21

20063430

BALL,4.76mm OD, Gr 100

1шт.

22

47646392

RESTRICTOR

1шт.

23

14158470

LOCK PIN,M2 x 10, Slotted

1шт.

24

84424758

SPRING,Compression, 20mm OD x 84.5mm L

1шт.

Выбрано товаров: 25
