Запчасти Case IH FARMALL 90C (21.134.AI[02]) - VAR - 330276, 334176 - TRANSMISSION, POWERSHUTTLE, CONTROL LEVER, GEARSHIFT (12X12) (12X12 CREEPER) - END YR 30-APR-2015 (21) - TRANSMISSION

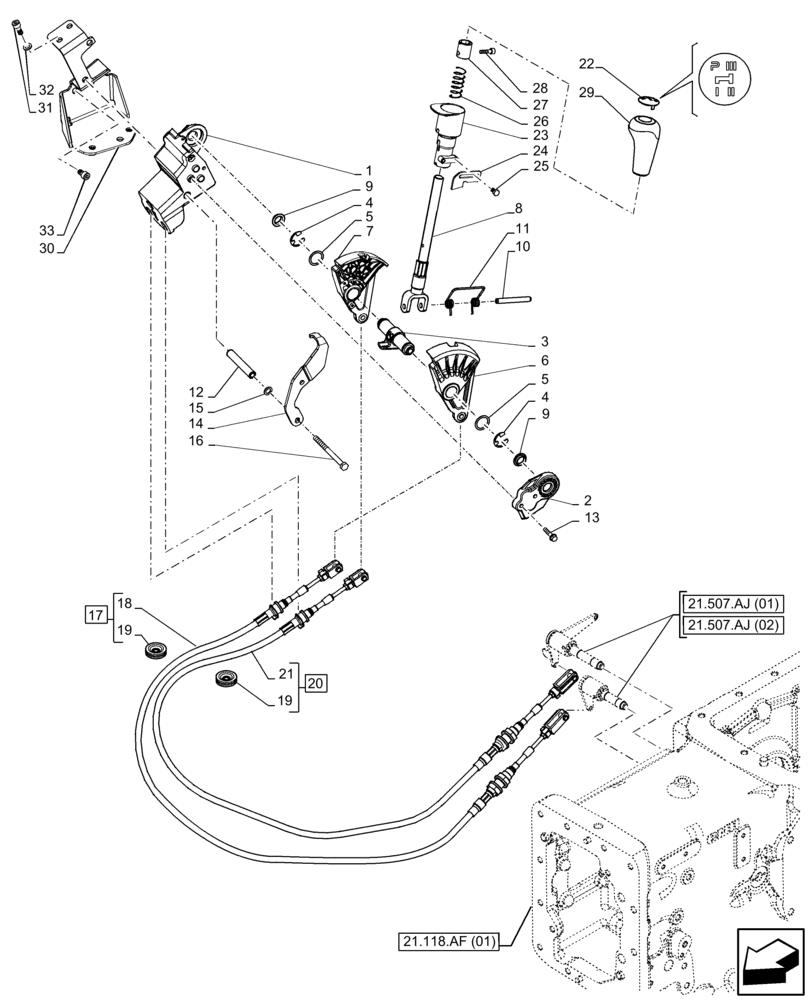

Схема запчастей Case IH FARMALL 90C - (21.134.AI[02]) - VAR - 330276, 334176 - TRANSMISSION, POWERSHUTTLE, CONTROL LEVER, GEARSHIFT (12X12) (12X12 CREEPER) - END YR 30-APR-2015 (21) - TRANSMISSION
23
19
12
7
5
22
9
17
3
19
26
21.507.aj (01)
13
5
15
1
27
8
24
32
9
11
28
30
6
18
21.507.aj (02)
25
21
10
14
4
21.118.af (01)
20
33
16
4
2
29
31

Артикул

Название

Примечание

Количество

1

84583575

SUPPORT

1шт.

2

84478538

SUPPORT

1шт.

3

84338367

SHAFT

1шт.

4

16165174

CIRCLIP,M16

2шт.

5

84583037

WASHER,22.5mm ID x 30mm OD x 1mm Thk

2шт.

6

84583494

FERRULE

LH, Black

1шт.

7

84583495

FERRULE

RH, Black

1шт.

8

84475369

LEVER

1шт.

9

84295357

BUSHING,16mm ID x 24mm OD x 6mm L

2шт.

10

14607870

LOCK PIN,M8 x 70, Slotted

1шт.

11

84325171

SPRING

1шт.

12

84338346

SPACER,8mm ID x 13mm OD x 81mm L

2шт.

13

15926104

SELF-TAP SCREW,ST 6.3 x 32 Type AB, HTS DAC

6.3 x 32mm

2шт.

14

84475339

RETAINING PLATE

1шт.

15

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

86980390

BOLT,Hex, M8 x 100mm, Cl 8.8

M8 x 1.25 x 100mm

2шт.

17

84366193

BOWDEN CONTROL

Range Control, RH, ASSY, Incl 18, 19 (Qty 1)

1шт.

18

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 17

1шт.

19

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

2шт.

20

84366194

BOWDEN CONTROL

Range Control, LH, ASSY, Incl 19 (Qty 1), 21

1шт.

21

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 20

1шт.

22

84381845

INSERT

Range Control Lever

1шт.

23

84475348

SELECTOR

1шт.

24

84475340

PLATE

1шт.

25

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

26

84491783

SPRING,Compression, 20mm OD x 54mm L

1шт.

27

84475350

SPACER,16mm ID x 23.5mm OD x 28mm L

1шт.

28

14432224

HEX SOC SCREW,M6 x 22mm, Cl 8.8, Full Thd

1шт.

29

84210474

KNOB

1шт.

30

84488301

BRACKET

1шт.

31

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

32

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

4шт.

33

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 33
