Запчасти Case IH FARMALL 90C (21.104.AS[01]) - TRANSMISSION, POWERSHUTTLE, RETURN PIPE (21) - TRANSMISSION

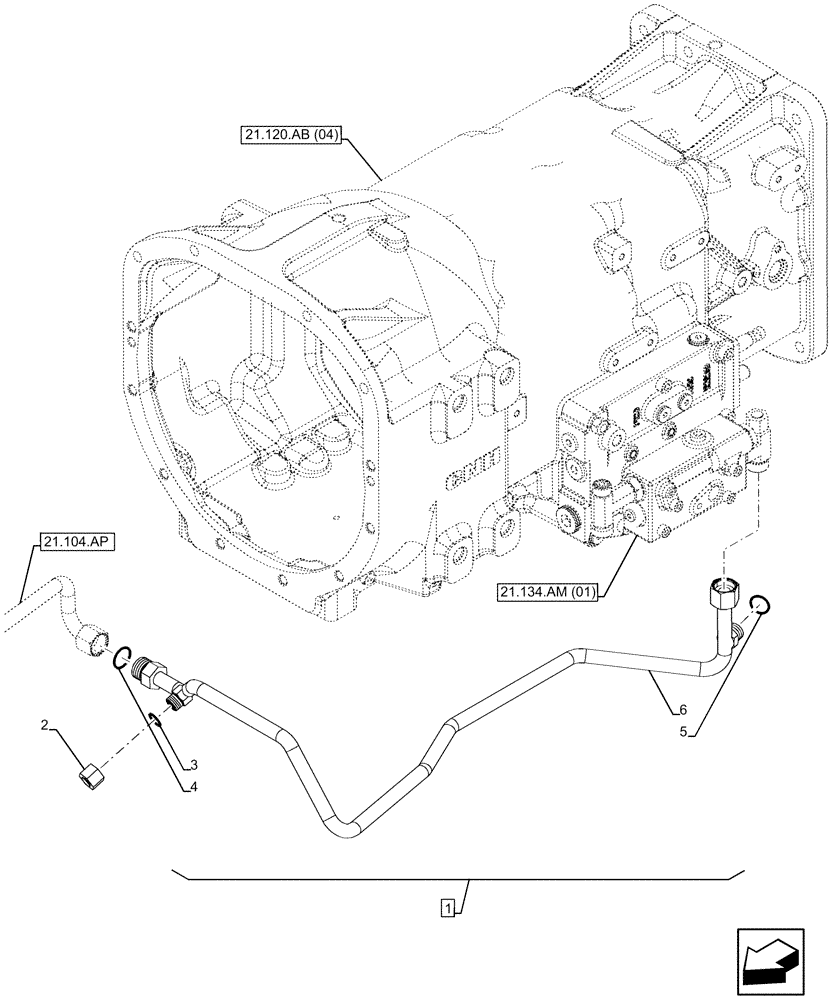

Схема запчастей Case IH FARMALL 90C - (21.104.AS[01]) - TRANSMISSION, POWERSHUTTLE, RETURN PIPE (21) - TRANSMISSION
21.104.ap
3
4
1
5
6
2
21.134.am (01)
21.120.ab (04)

Артикул

Название

Примечание

Количество

1

47481435

PIPE

From Valve to Oil Filter, ASSY, Incl 3 - 6

1шт.

2

9625546

CAP,11/16" - 16 ORFS

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

0.364" ID x 0.504" OD x 0.07" W

1шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

0.754" OD x 0.614" ID x 0.07" W

1шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

0.489" ID x 0.629" OD x 0.07" W

1шт.

6

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

Выбрано товаров: 6
