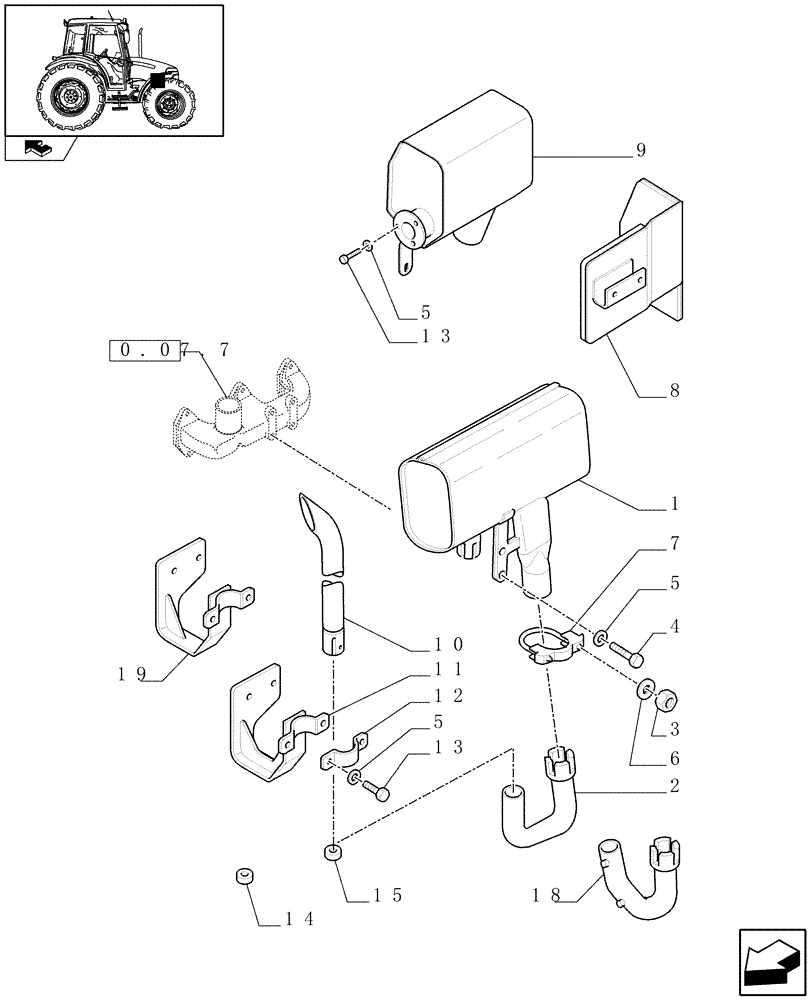

Запчасти Case IH FARMALL 90 (1.15.1) - MUFFLER - PIPE, COLLARS AND SUPPORT (02) - ENGINE EQUIPMENT

1

5172649

MUFFLER,W/ Spark Arrester

1шт.

2

87599010

ELBOW

, Serial Range: -C5884

1шт.

2

87743793

ELBOW

, Start Serial: D5884

1шт.

3

12164714

NUT,M10 x 1.25, Cl 8

2шт.

4

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

7шт.

6

10571874

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

7

5097157

CLAMP,50mm ID

D=50

1шт.

7

5097158

COLLAR,60mm ID

D=60

1шт.

8

87644400

GUARD

NA Only

1шт.

9

87598946

MUFFLER

NA Only, Serial Range: -C5884

1шт.

9

87743821

MUFFLER

, Start Serial: D5884

1шт.

10

5091091

EXHAUST SYSTEM PIPE

1шт.

11

87598998

SUPPORT

, Serial Range: -C6729

1шт.

12

84409237

COLLAR

1шт.

13

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

14

87679104

SPACER

1шт.

15

87747747

RUBBER BUSHING

1шт.

16

84153582

SUPPORT

1шт.

For High Clearance Version (Valid for 95 Model only)

1шт.

17

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

18

5095425

ELBOW

1шт.

For High Clearance Version (Valid for 95 Model only)

1шт.

19

84287723

SUPPORT

, Start Serial: D6729

1шт.
