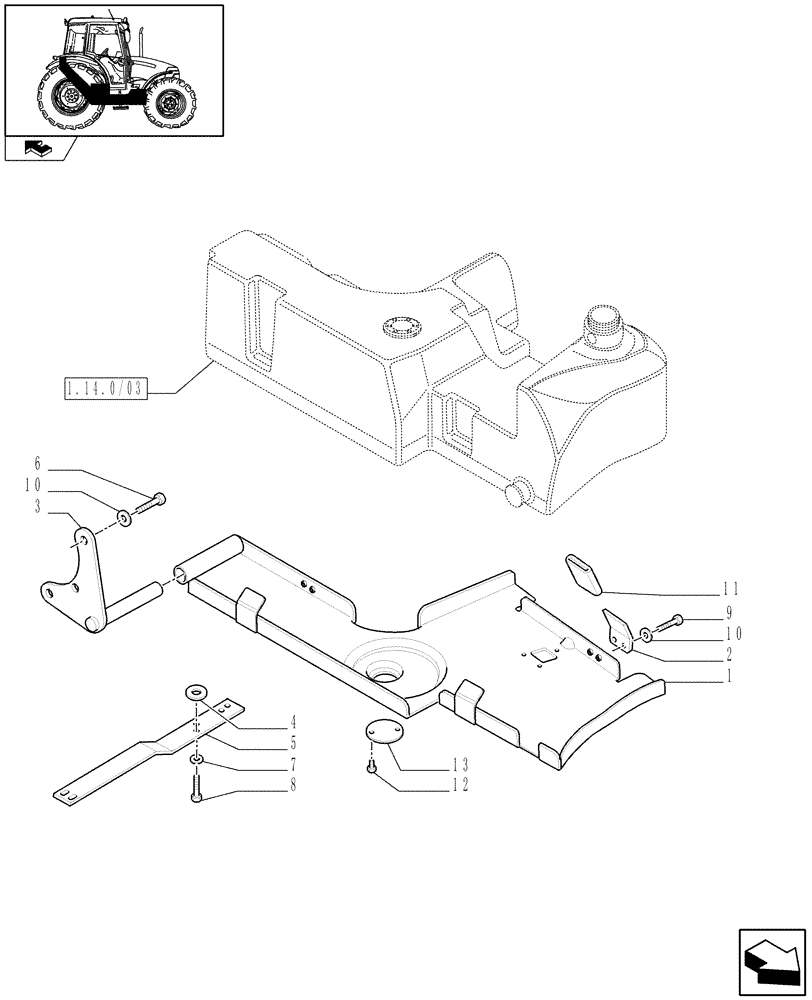

Запчасти Case IH FARMALL 90 (1.14.7/02) - JAPAN SMV EMBLEM - FUEL TANK SUPPORT (VAR.332011) (02) - ENGINE EQUIPMENT

1

84252690

BASE PLATE

1шт.

2

5089670

PLATE

2шт.

3

5089671

PIN

1шт.

4

5090428

WASHER

1шт.

5

5089659

BRACKET

1шт.

6

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

7

12601774

WAVE WASHER,17mm ID x 30mm OD x 1.60mm, 6.30mm Max, CST, DAC

M16

3шт.

8

15980521

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

9

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

10

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

11

5092858

RUBBER PAD

4шт.

12

10979421

SCREW,Hex, M6 x 10mm, Cl 8.8

2шт.

13

84252255

PLUG

1шт.
