Запчасти Case IH FARMALL 90 (0.88.0[03A]) - AIR CONDITIONING UNIT - FILTER AND BRACKET - D6060 (VAR.330641-336641) (01) - ENGINE

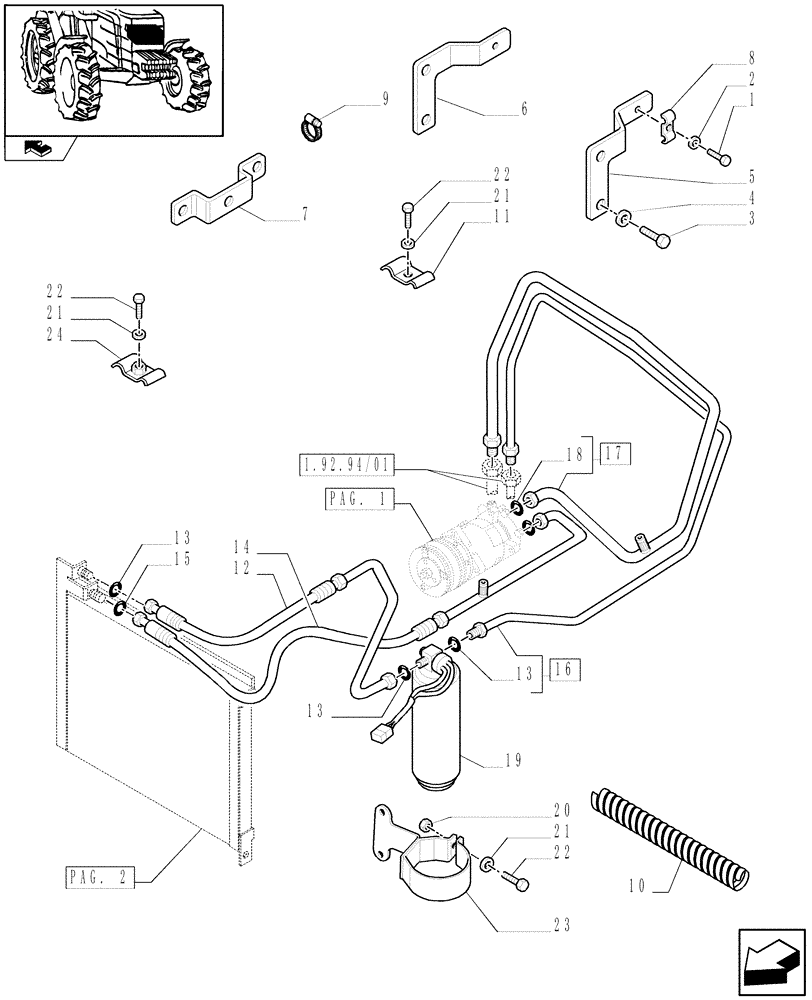

Схема запчастей Case IH FARMALL 90 - (0.88.0[03A]) - AIR CONDITIONING UNIT - FILTER AND BRACKET - D6060 (VAR.330641-336641) (01) - ENGINE
12
13
21
8
4
22
13
17
21
7
5
11
home
22
10
6
2
13
18
23
19
16
14
9
3
15
1
24
pag. 1
pag. 2
1.92.94/01
22
21
20

Артикул

Название

Примечание

Количество

1

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

2шт.

2

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

3

11115321

SCREW,Hex, M14 x 25mm, Cl 8.8, Full Thd

M14 x 25, Full 8.8

4шт.

4

12601674

WAVE WASHER,Wave, M15

M14

4шт.

5

87484030

SUPPORT

1шт.

6

87484031

SUPPORT

1шт.

7

87725248

SUPPORT

1шт.

8

87489093

COLLAR

1шт.

9

87557209

CLAMP,16mm - 27mm

1шт.

10

5186848

FLEXIBLE HOSE

2шт.

11

87647132

CLAMP

1шт.

12

87483462

A/C HOSE

Incl. 13

1шт.

13

14452883

O-RING,7.65mm ID x 1.78mm Width

3шт.

14

87483463

A/C HOSE

Incl. 15

1шт.

15

14453083

O-RING

2шт.

16

87483465

PIPE

Dryer To Evaporator

1шт.

17

87483464

TUBE

Evaporator To Compressor

1шт.

18

14453283

O-RING,14mm ID x 1.78mm Width

1шт.

19

5165615

RECEIVER-DRYER

1шт.

Valid with FARMALL 90, JX90, JX95 Models

1шт.

20

15896214

NUT,M6, Cl 8

1шт.

21

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

5шт.

22

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

5шт.

23

87647127

SUPPORT

1шт.

24

87647135

CLAMP

2шт.

Выбрано товаров: 25
