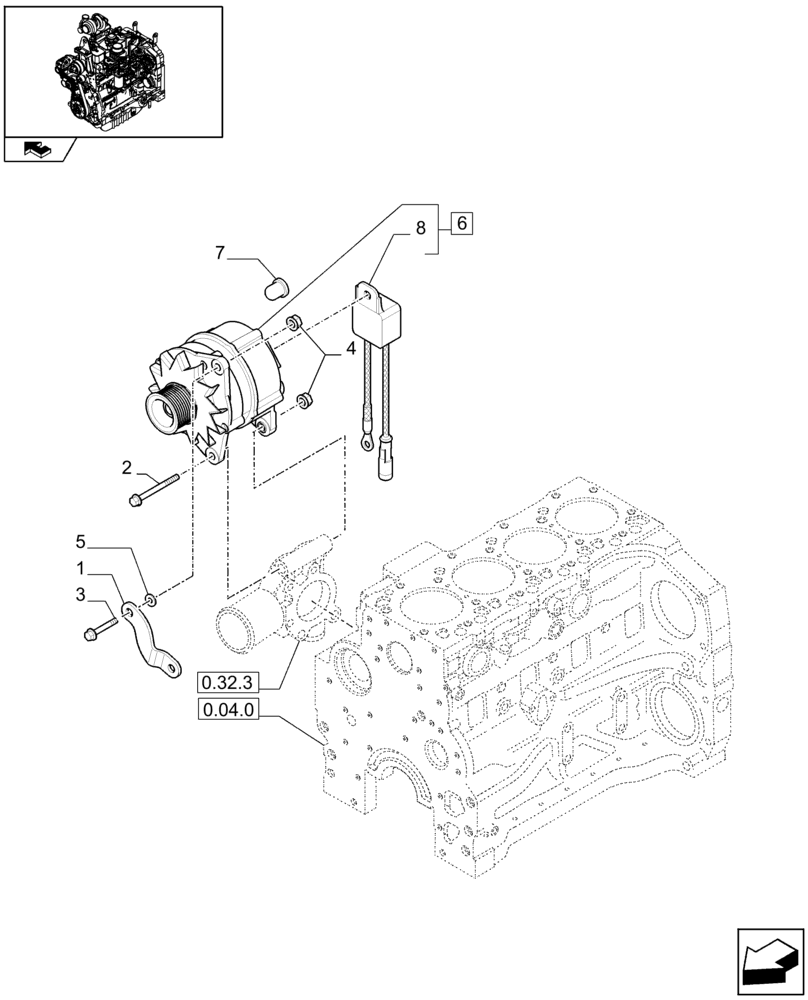

Запчасти Case IH FARMALL 90 (0.40.0) - ALTERNATOR (01) - ENGINE

1

87718732

SUPPORT

1шт.

2

15972424

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

1шт.

3

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

1шт.

4

12164714

NUT,M10 x 1.25, Cl 8

3шт.

5

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

1шт.

6

87311822

ALTERNATOR,120A, W/ Pulley

ASSY, Serial Range: -C7309

1шт.

6

47383500

ALTERNATOR,14V, 120A, W/Pulley

ASSY, Start Serial: D7309

1шт.

6

87311822R

REMAN-ALTERNATOR

Reman for New PN 87311822

1шт.

6

87311822C

CORE-ALTERNATOR

Return Number

1шт.

7

5132136

CAP COVER,M8

M8

1шт.

8

87537543

CABLE

1шт.
