(0.08.3/01) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - FLYWHEEL (VAR.330120-331120)

Запчасти Case IH FARMALL 90 (0.08.3/01) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - FLYWHEEL (VAR.330120-331120) (01) - ENGINE

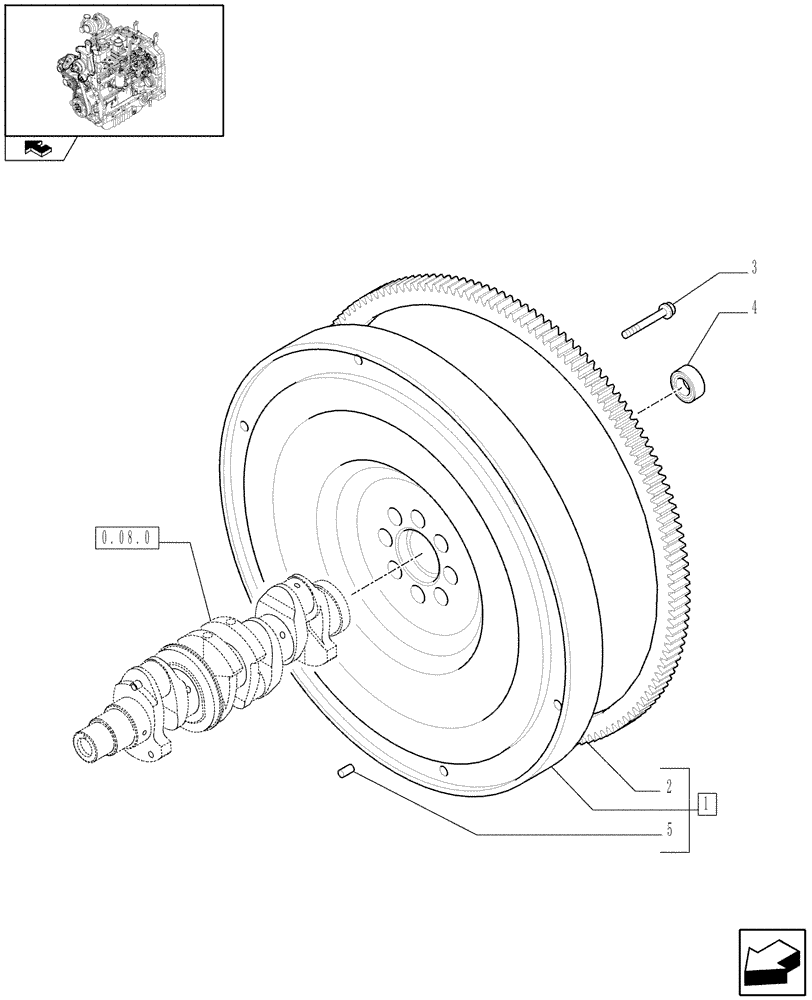

Схема запчастей Case IH FARMALL 90 - (0.08.3/01) - POWER SHUTTLE E SERVO PTO FOR DIFF. LOCK - FLYWHEEL (VAR.330120-331120) (01) - ENGINE
home
3
4
5
0.08.0
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84387314

ENGINE FLYWHEEL,337mm OD, W/ Ring Gear

ASSY

1шт.

2

47133696

RING GEAR,104T

1шт.

3

47133720

BOLT,Hex, M12 x 1.25 x 31.5

8шт.

4

84209744

BALL BEARING

1шт.

5

10839710

DOWEL,M10 x 15.00mm

1шт.

Выбрано товаров: 5
