Запчасти Case IH FARMALL 90 (1.92.91/01) - REAR WINDSHIELD WIPER (VAR.335642) (10) - OPERATORS PLATFORM/CAB

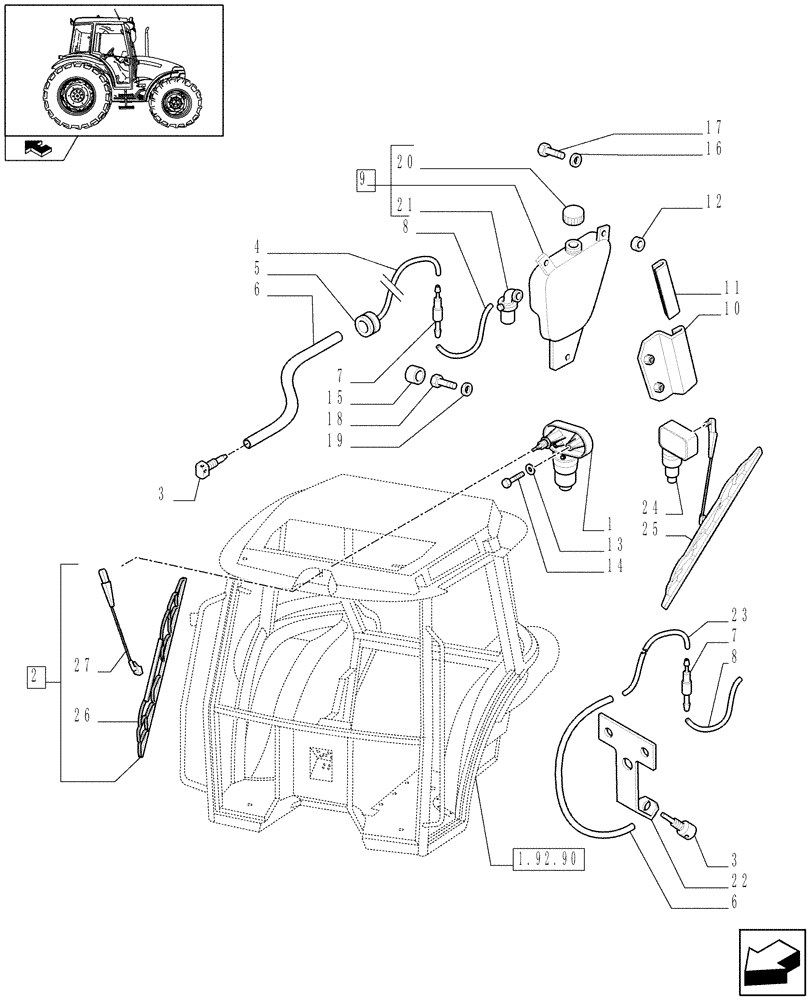

Схема запчастей Case IH FARMALL 90 - (1.92.91/01) - REAR WINDSHIELD WIPER (VAR.335642) (10) - OPERATORS PLATFORM/CAB
13
8
15
12
14
19
7
20
6
1
26
3
9
3
25
home
5
4
10
21
16
22
24
17
27
6
23
2
1.92.90
8
18
11
7

Артикул

Название

Примечание

Количество

1

5092906

WIPER MOTOR

Front, Serial Range: -C5932

1шт.

1

87474388

WIPER MOTOR

, Start Serial: D5932

1шт.

2

5092905

WIPER ARM

Front, ASSY

1шт.

3

5092907

NOZZLE

2шт.

4

5092908

TUBE

Front

1шт.

5

5092913

GROMMET

1шт.

6

5094134

HOSE,25mm ID x 165mm L

4шт.

7

5092910

FITTING

2шт.

8

5092909

HOSE,4mm ID x 200mm L

2шт.

9

5096076

RESERVOIR, WINDSHIEL

Double Outlet

1шт.

10

5094175

SUPPORT

1шт.

11

5094138

RUBBER SEAL,171mm L

Front

1шт.

11

5094133

FLEXIBLE SHEATH

Rear

1шт.

12

5093041

RUBBER BUSHING,9mm ID x 20mm OD x 6.8mm L

1шт.

13

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

1шт.

14

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

15

5089481

CAP,17mm OD

2шт.

16

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

17

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

18

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

19

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

20

87302624

CAP

1шт.

21

87309569

PUMP

2шт.

22

5094345

SUPPORT

Rear

1шт.

23

5093390

HOSE,4mm ID x 3320mm L

Rear

1шт.

24

5093388

WIPER MOTOR,12V

Rear

1шт.

25

5093389

KIT

Rear

1шт.

26

87754206

WIPER BLADE

1шт.

27

87754207

WIPER ARM

1шт.

Выбрано товаров: 29
