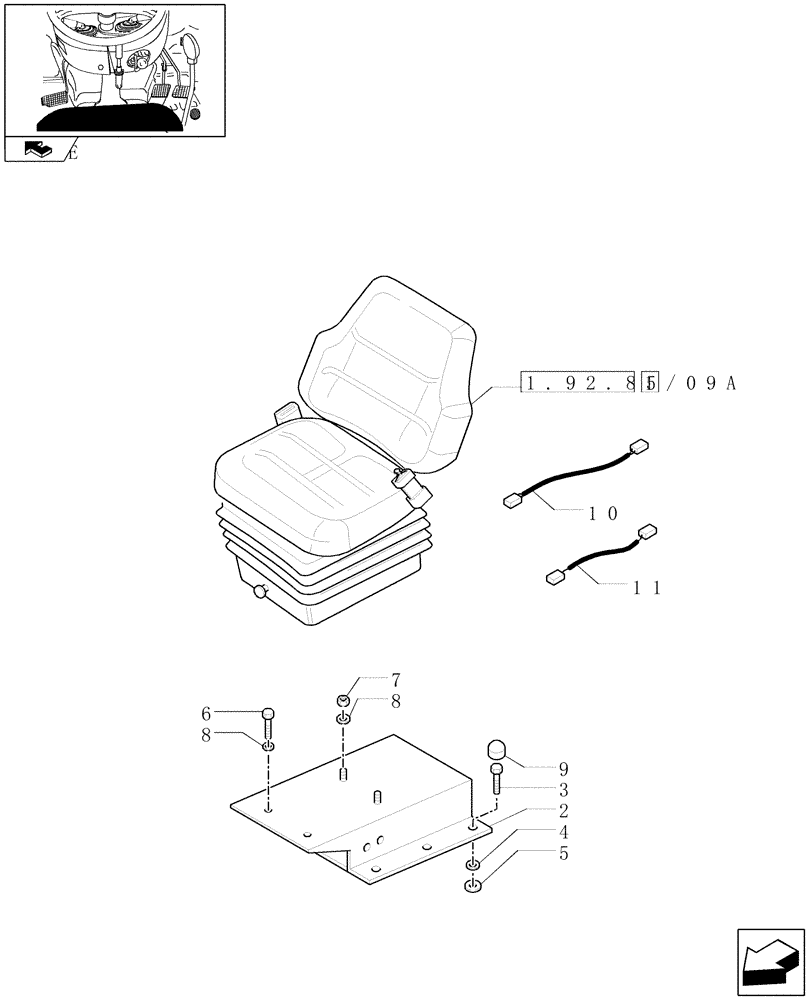

Запчасти Case IH FARMALL 90 (1.92.85/09) - DELUXE SEAT WITH AIR SUSPENSION AND RETRACTABLE BELTS - W/CAB (VAR.335850-336850) (10) - OPERATORS PLATFORM/CAB

1

47129031

DRIVER SEAT

ASSY, Serial Range: -C5798

1шт.

Fabric Case

1шт.

1

87751929

DRIVER SEAT

ASSY, Start Serial: D5798

1шт.

Fabric Case with Increased Seat Back and Cushion

1шт.

2

87693002

SUPPORT

1шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

4

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

6шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

6

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

8

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

9

5089481

CAP,17mm OD

6шт.

10

87703924

ELECTRIC CABLE

Seat Connection

1шт.

11

87486267

ELECTRIC CABLE

1шт.

Valid only for VAR.335850

1шт.
