(1.92.75[02]) - ELECTRIC CONTROLS

Запчасти Case IH FARMALL 90 (1.92.75[02]) - ELECTRIC CONTROLS (10) - OPERATORS PLATFORM/CAB

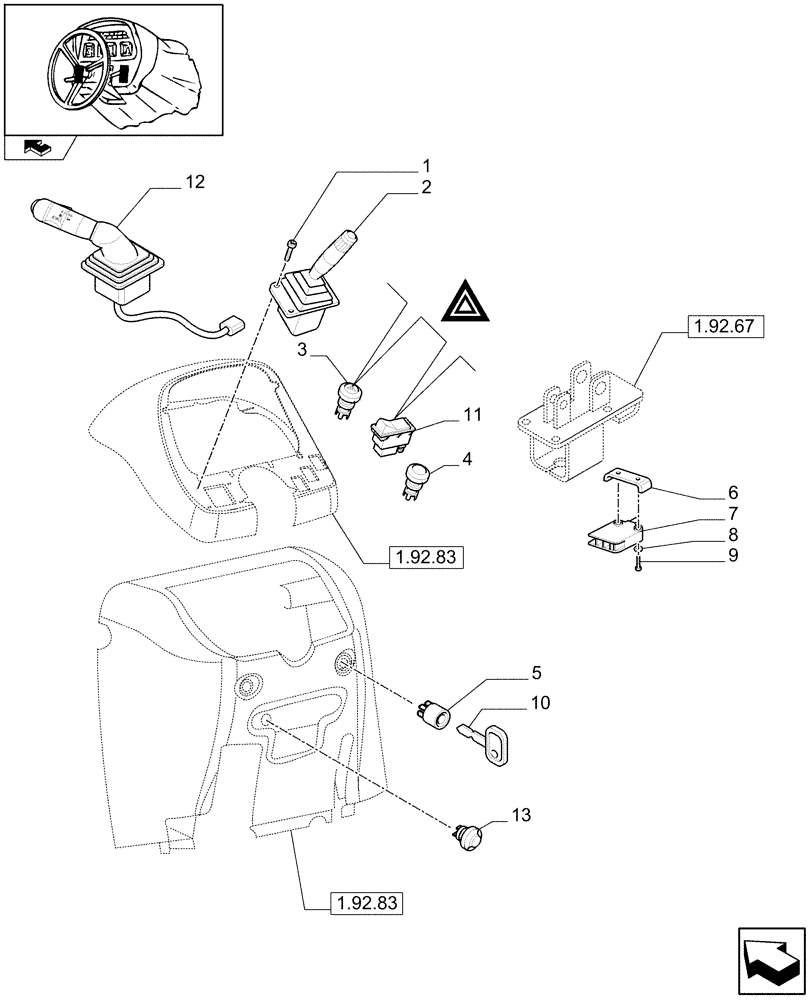

Схема запчастей Case IH FARMALL 90 - (1.92.75[02]) - ELECTRIC CONTROLS (10) - OPERATORS PLATFORM/CAB
1.92.83
5
4
1
13
9
11
1.92.67
6
10
3
7
12
1.92.83
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

4шт.

2

5089705

SWITCH

Lights, Horn, Directional Signals, Serial Range: -C7011

1шт.

3

5122659

FLASHER SWITCH

Emergency, Hazard, Serial Range: -C6270

1шт.

4

5093168

LIGHT SWITCH

Front Work

1шт.

5

5146155

IGNITION SWITCH

1шт.

6

5093339

BRACKET

1шт.

7

87702928

PUSH BUTTON SWITCH

Hand Brake

1шт.

8

10571379

LOCK WASHER,M4

2шт.

9

13272617

SCREW,Pozidriv Pan Hd, M4 x 25mm, Cl 5.8

2шт.

10

47126500

IGNITION KEY

Red

1шт.

10

5170782

IGNITION KEY

Black

1шт.

11

84155394

FLASHER SWITCH

Hazard, Start Serial: D6270

1шт.

12

84209856

TOGGLE SWITCH

Lights, Horn, Directional Signals, Start Serial: D7011

1шт.

13

5086006

SWITCH

1шт.
