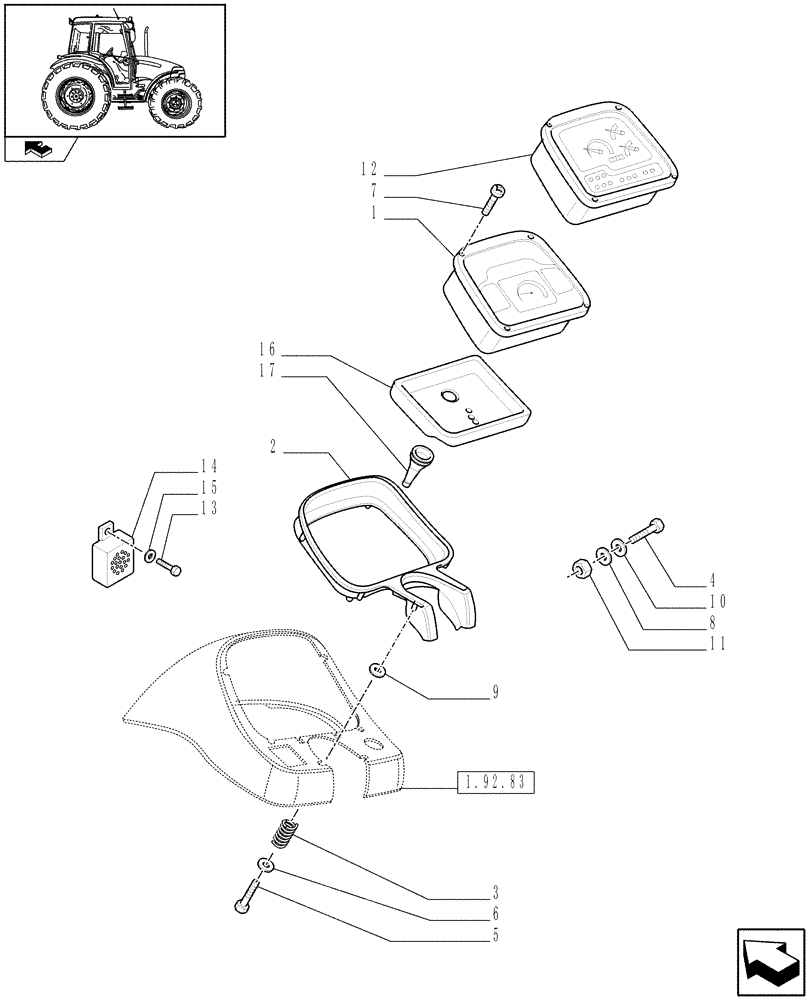

Запчасти Case IH FARMALL 90 (1.92.75[01]) - ELECTRIC CONTROLS - INSTRUMENT CLUSTER (10) - OPERATORS PLATFORM/CAB

1

5096046

INSTRUMENT CLUSTER

1шт.

JX models

1шт.

2

5089537

BEZEL

, Serial Range: -C6879

1шт.

2

84388723

BEZEL

, Start Serial: D6879

1шт.

3

5089761

SPRING

6шт.

4

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

5

15693501

SCREW,Cross Oval Hd, M4.8 x 22

6шт.

6

12644401

WASHER,6.15mm ID x 15mm OD x 1mm Thk

6шт.

7

15958107

SCREW,Pan Hd, M4 x 25

4шт.

8

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

1шт.

9

5094197

WASHER,10.5mm ID x 18mm OD x 2mm Thk

2шт.

10

10571579

LOCK WASHER,M6

1шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

12

87486813

INSTRUMENT PANEL

, Serial Range: -C6306

1шт.

12

84168455

INSTRUMENT CLUSTER

, Serial Range: D6306-C7066

1шт.

12

84327482

INSTRUMENT CLUSTER

, Start Serial: D7066

1шт.

13

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

14

5188605

BUZZER,12V, 0.7A

1шт.

NA Package, VAR.330007

1шт.

15

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

1шт.

16

84286370

COVER

1шт.

17

84286371

BOOT

1шт.
