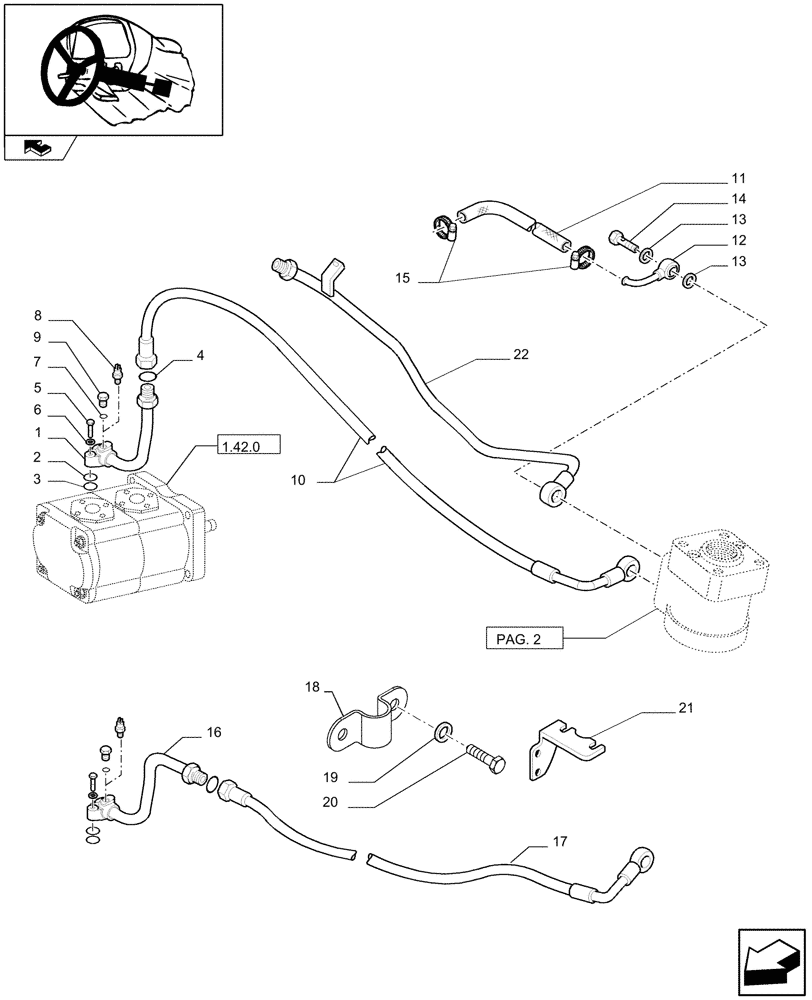

Запчасти Case IH FARMALL 90 (1.92.63[03]) - POWER STEERING - PUMP AND PIPES (10) - OPERATORS PLATFORM/CAB

1

47132339

TUBE

, Serial Range: -C6060

1шт.

2

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

3

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

1шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

14305524

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

6

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

7

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

D=12

1шт.

8

5099414

PRESSURE SWITCH

1шт.

9

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

Less Warning Turn Indicator Buzzer, VAR.335930

1шт.

10

87626412

HOSE ASSY.

, Serial Range: -C6060

1шт.

11

87626440

HYDRAULIC HOSE,15.9mm ID x 1800mm L

1шт.

12

5094789

TUBE

1шт.

13

44019496

SEAL,21.2mm ID x 26mm OD x 2mm Thk

21.2x26x2

4шт.

14

5112983

BANJO BOLT,1/2" GAS x 36mm L

2шт.

14

5100984

BANJO BOLT,M18 x 1.5, 34mm L

1шт.

Rear Electrohydraulic Diff. Lock and Electrohydraulic 4WD Engagement; VAR.330384 (743909)

1шт.

15

87557209

CLAMP,16mm - 27mm

D=16-27

2шт.

16

87486233

PIPE

, Start Serial: D6060

1шт.

Valid also for VAR.335930

1шт.

17

87486214

FLEXIBLE HOSE

, Start Serial: D6060

1шт.

17

87721732

HYDRAULIC HOSE

1шт.

Rear Electrohydraulic Diff. Lock and Electrohydraulic 4WD Engagement; VAR.330384 (743909)

1шт.

18

87486801

COLLAR

, Start Serial: D6060

1шт.

19

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

, Start Serial: D6060

2шт.

20

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

, Start Serial: D6060

2шт.

21

87486269

SUPPORT

, Start Serial: D6060

1шт.

22

84211673

PIPE

1шт.

Rear Electrohydraulic Diff. Lock and Electrohydraulic 4WD Engagement; VAR.330384 (743909)

1шт.
