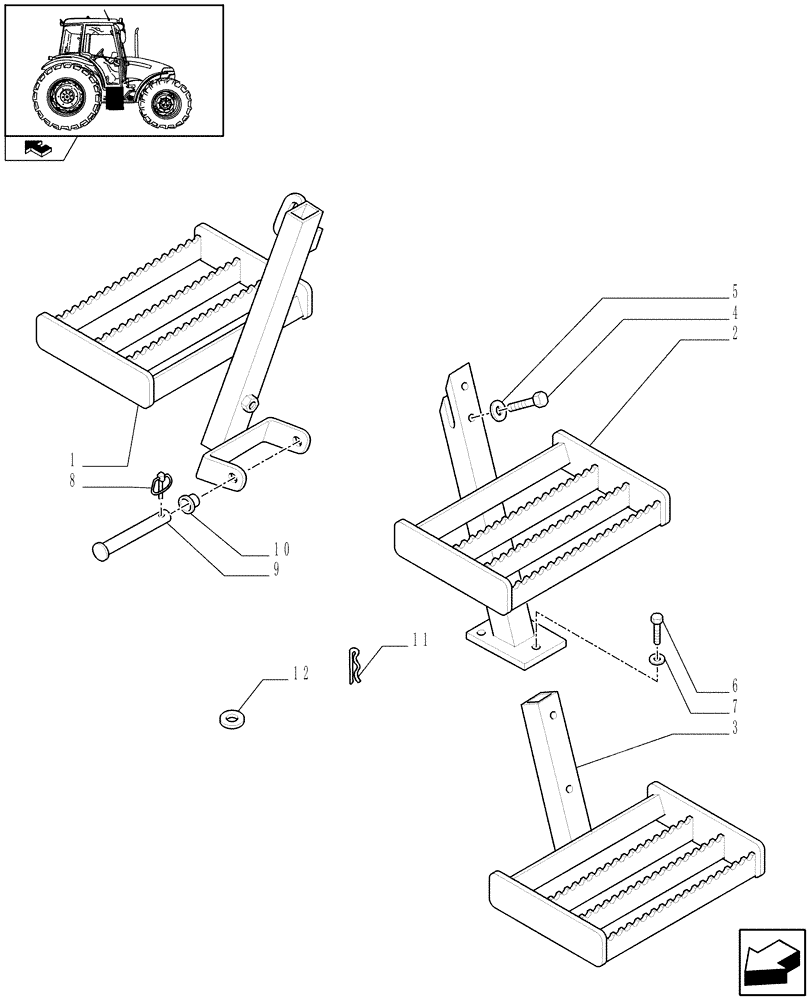

Запчасти Case IH FARMALL 90 (1.87.0[03]) - SMALL LADDER (08) - SHEET METAL

1

87626434

FOOT BOARD

RH

1шт.

2

5089941

STEP

LH

1шт.

3

5089942

STEP

ASSY

2шт.

4

15541021

SCREW,Hex, M12 x 1.25 x 60mm, Cl 8.8

3шт.

5

12601574

WAVE WASHER,Wave, M13

3шт.

6

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

7

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

8

5103862

LOCK PIN,16mm OD

1шт.

9

87626423

PIN

1шт.

10

87626733

SLEEVE,12mm ID x 18mm OD x 20mm L

2шт.

11

10734601

COTTER PIN,3.2mm OD x 28mm OAL

1шт.

12

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.
