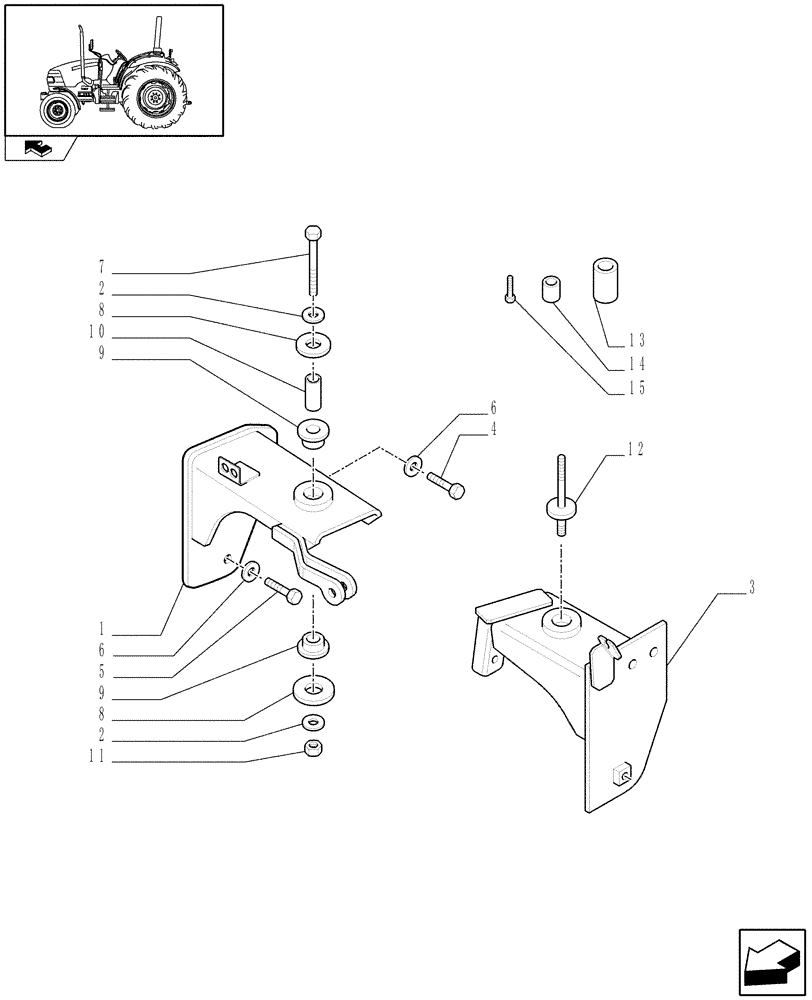

Запчасти Case IH FARMALL 90 (1.87.0[02]) - SUPPORTS - L/CAB (08) - SHEET METAL

1

84145258

SUPPORT

RH

1шт.

2

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

6шт.

3

87391994

SUPPORT

LH

1шт.

4

15237834

SCREW,Hex, M16 x 1.5 x 80mm, Cl 10.9

4шт.

5

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

2шт.

6

10572179

LOCK WASHER,M16

6шт.

7

15541921

BOLT,Hex, M12 x 1.25 x 130mm, Cl 8.8

2шт.

8

5167723

WASHER,12.5mm ID x 75mm OD x 4mm Thk

6шт.

9

5187531

RUBBER WASHER,16.5mm ID x 60mm OD x 20mm Thk

8шт.

10

5167724

SPACER,12.25mm ID x 17mm OD x 38mm L

4шт.

11

16105021

LOCK NUT,M12 x 1.25, Cl 10

6шт.

12

87396006

CROSS

2шт.

13

87626409

SPACER

1шт.

14

87626408

SPACER,17mm ID x 30mm OD x 64.4mm L

1шт.

15

15238334

BOLT,Hex, M16 x 1.5 x 105mm, Cl 10.9

2шт.
