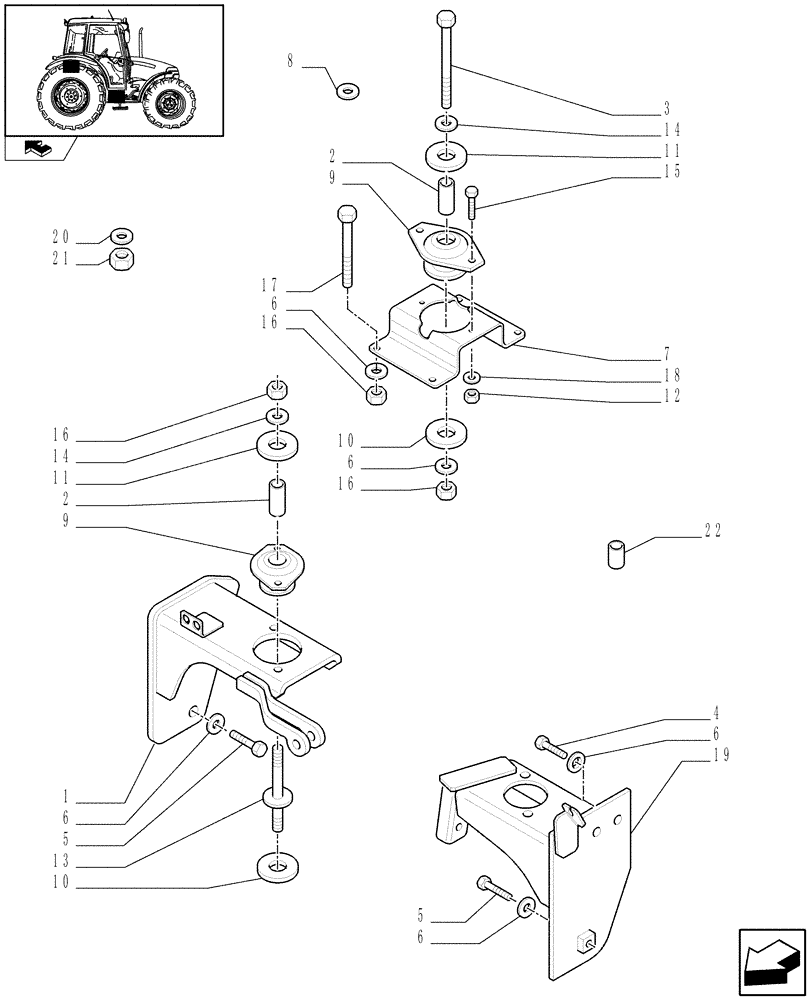

Запчасти Case IH FARMALL 90 (1.87.0[01]) - CAB SUPPORTS (08) - SHEET METAL

1

84145314

SUPPORT

RH

1шт.

2

5132014

SPACER,17mm ID x 24mm OD x 57mm L

6шт.

3

15864324

BOLT,Hex, M16 x 1.5 x 130mm, Cl 8.8

2шт.

4

11376237

BOLT,Hex, M16 x 1.5 x 35mm, Cl 8.8

4шт.

5

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

2шт.

6

10516874

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

M16

8шт.

7

5089522

SUPPORT

, Serial Range: -C5973

2шт.

7

5098775

SUPPORT

, Start Serial: D5973

2шт.

8

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

4шт.

9

5132016

ISOLATOR

6шт.

10

5092190

SPACER,17mm ID x 90mm OD x 8mm L

6шт.

11

5092191

SPACER,17mm ID x 90mm OD x 4mm L

6шт.

12

12164711

NUT,M10 x 1.25, Cl 8

12шт.

13

5089999

STUD

2шт.

14

13580101

WASHER,16.4mm ID x 32mm OD x 4mm Thk

2шт.

15

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

12шт.

16

12164121

NUT,M16 x 1.5, Cl 10

10шт.

17

15985031

BOLT,Hex, M18 x 1.5 x 90mm, Cl 10.9

6шт.

18

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

8шт.

19

87391993

SUPPORT

LH

1шт.

20

12601874

SPRING WASHER,19mm ID x 34mm OD x 1.6mm Thk

6шт.

21

10721021

NUT,M18 x 1.5, Cl 10

6шт.

21

87626408

SPACER,17mm ID x 30mm OD x 64.4mm L

1шт.

22

87626409

SPACER

1шт.
