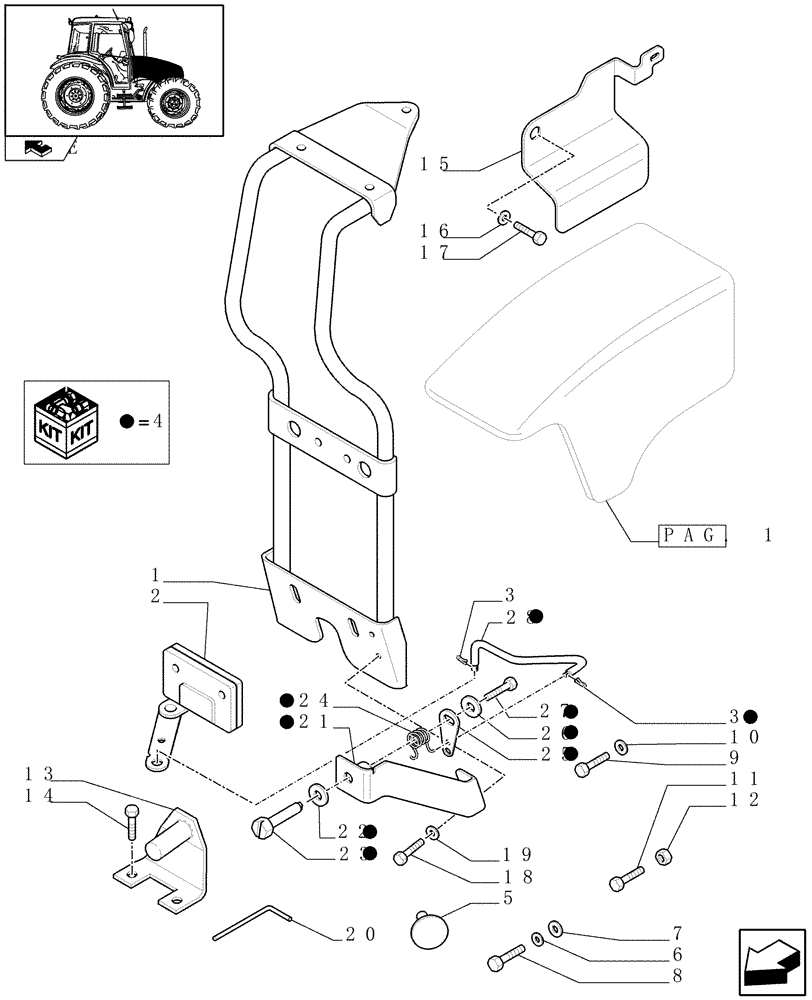

Запчасти Case IH FARMALL 90 (1.83.0[02A]) - HOODS - D6520 (08) - SHEET METAL

1

84279691

SUPPORT

16043221 screw goes in bottom holes

1шт.

2

5097604

LATCH

1шт.

3

86639115

COTTER PIN,M2 x 12

2шт.

4

84279182

LEVER

ASSY

1шт.

5

47056191

PUSH BUTTON

1шт.

6

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

7

12601074

WAVE WASHER,4.30mm ID x 9mm OD x 0.50mm, 2mm Max, CST, DAC

14шт.

7

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

7

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

7

10519201

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

30шт.

7

10571579

LOCK WASHER,M6

2шт.

7

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

20шт.

7

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

13шт.

8

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

8

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

8

11098621

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

2шт.

8

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

8

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

15шт.

9

10444511

BOLT,Hex, M4 x 10mm, Cl 5.8, Full Thd

10шт.

9

11106124

BOLT,Hex, M10 x 22mm, Cl 8.8

6шт.

10

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

10

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

10

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

10

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

3шт.

10

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

10

12642701

WASHER,8.15mm ID x 12mm OD x 1mm Thk

15шт.

11

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

1шт.

12

10790111

NUT,M10 x 1.25, Cl 8

1шт.

12

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

13

5096768

SUPPORT

1шт.

14

10923121

SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

15

84143150

HEAT SHIELD

1шт.

16

12601674

WAVE WASHER,Wave, M15

1шт.

17

11115321

SCREW,Hex, M14 x 25mm, Cl 8.8, Full Thd

1шт.

18

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

19

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

2шт.

20

84309099

ROD,6mm OD

, Start Serial: D6667

1шт.

21

84279170

SUPPORT

1шт.

22

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

23

84279169

PIN

1шт.

24

84279175

SPRING

1шт.

25

84279174

PLATE

1шт.

26

84279180

LOCK WASHER,4.30mm ID x 14mm OD

1шт.

27

13271824

SCREW,Pozidrive, Pan HD, M4 x 8mm, Cl 8.8

1шт.

28

84279168

ROD

1шт.
