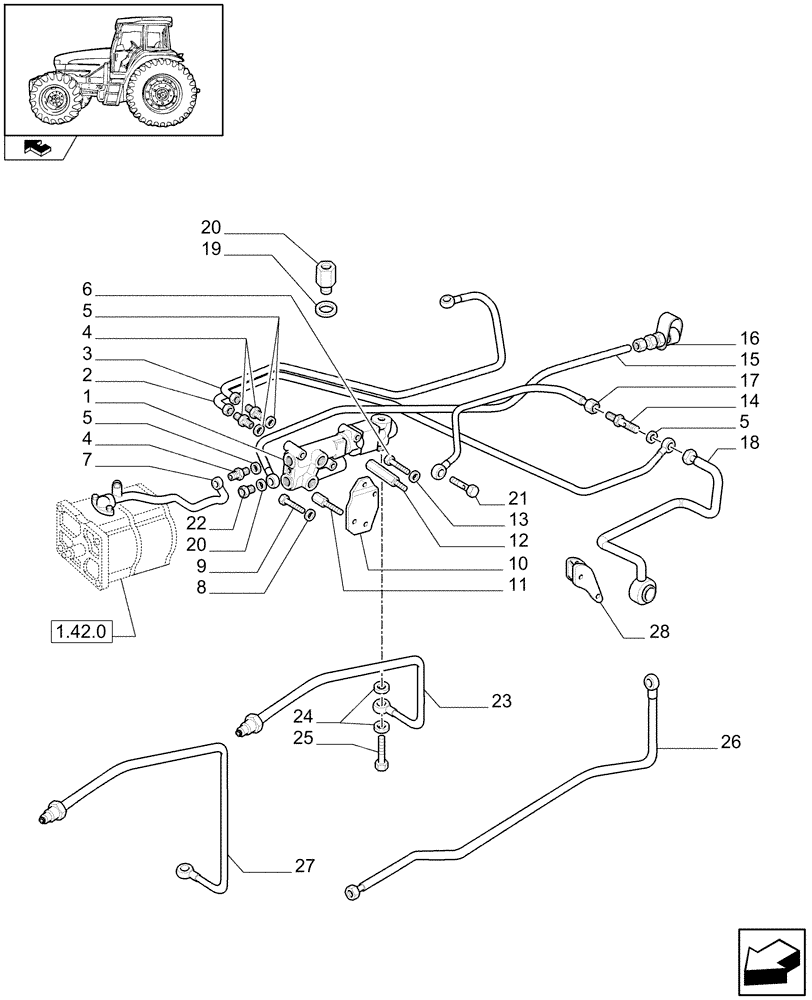

Запчасти Case IH FARMALL 90 (1.82.713) - TRAILER BRAKE VALVE (FRANCE) (VAR.335370-336370-337370-338370-339370-743516) (07) - HYDRAULIC SYSTEM

1

5165720

TRAILER BRAKE VALVE

1шт.

2

5095102

BRAKE LINE

1шт.

Hydraulic Trailer Valve France for 1 Remote, VAR.335370 (743516)

1шт.

Hydraulic Trailer Valve France for 2 Remotes, VAR.336370 (743516)

1шт.

Hydraulic Trailer Valve France for 3 Remotes, VAR.337370 (743516)

1шт.

Valid for VAR.335370, 336370, 337370 (743516) Before Date 01 April 2011, Valid for all Variant After Date 01 April 2011

1шт.

2

87391316

TUBE

, Serial Range: -C6932

1шт.

Hydraulic Trailer Valve France for 4 Remotes with Flow Control, VAR.339370 (743516)

1шт.

Hydraulic Trailer Valve France for 3 Remotes with Flow Control, VAR.338370 (743516)

1шт.

3

5093767

BRAKE LINE

1шт.

Hydraulic Trailer Valve France for 1 Remote, VAR.335370 (743516)

1шт.

3

5093768

BRAKE LINE

1шт.

Hydraulic Trailer Valve France for 2 Remotes, VAR.336370 (743516)

1шт.

3

5093769

TUBE

, Serial Range: -C6932

1шт.

Hydraulic Trailer Valve France for 3 Remotes with Flow Control, VAR.338370 (743516)

1шт.

Hydraulic Trailer Valve France for 3 Remotes, VAR.337370 (743516)

1шт.

3

87391318

BRAKE LINE

, Serial Range: -C6932

1шт.

Hydraulic Trailer Valve France for 3 Remotes, VAR.337370 (743516)

1шт.

4

5108830

HYD CONNECTOR,M22 x 1.5 x M18 x 1.5

3шт.

5

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

5094386

PIPE

1192MM

1шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

9

16044421

SCREW,Hex, M8 x 60mm, Cl 8.8

2шт.

10

5121943

SUPPORT

, Serial Range: -C6932

1шт.

11

87393489

SPACER,M12 x 1.25, 74.5mm L

72MM

1шт.

12

5092562

SPACER,M12 x 1.25, 100mm L

100MM

1шт.

13

11193871

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

14

87640345

HYD CONNECTOR,M22 x 1.5 x M22 x 1.5

1шт.

15

5093776

BRAKE LINE

, Serial Range: -C6932

1шт.

15

84372770

BRAKE LINE

, Start Serial: D6932

1шт.

16

44015354

QUICK MALE COUPLING

1шт.

17

5092061

BRAKE LINE

1шт.

Hydraulic Trailer Valve France for 1 Remote, VAR.335370 (743516)

1шт.

Hydraulic Trailer Valve France for 2 Remotes, VAR.336370 (743516)

1шт.

Hydraulic Trailer Valve France for 3 Remotes, VAR.337370 (743516)

1шт.

Valid for VAR.335370, 336370, 337370 (743516) Before Date 01 April 2011, Valid for all Variant After Date 01 April 2011

1шт.

17

87391311

TUBE,16 mm OD x 377, 334 mm L

, Serial Range: -C6932

1шт.

Hydraulic Trailer Valve France for 4 Remotes with Flow Control, VAR.339370 (743516)

1шт.

Hydraulic Trailer Valve France for 3 Remotes with Flow Control, VAR.338370 (743516)

1шт.

18

5093239

BRAKE LINE

1шт.

Hydraulic Trailer Valve France for 1 Remote, VAR.335370 (743516)

1шт.

Hydraulic Trailer Valve France for 2 Remotes, VAR.336370 (743516)

1шт.

Hydraulic Trailer Valve France for 3 Remotes, VAR.337370 (743516)

1шт.

19

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

5шт.

20

5092080

SPACER,M18 x 1.5 Male ORFS x M18 x 1.5 Female ORFS

1шт.

21

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

22

5100984

BANJO BOLT,M18 x 1.5, 34mm L

1шт.

23

87626247

BRAKE LINE

, Serial Range: -C6530

1шт.

24

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

2шт.

25

4864082

BANJO BOLT

1шт.

26

87618898

TUBE

, Serial Range: -C6066

1шт.

26

84121908

PIPE

Rear Delivery, Serial Range: D6066-C6932

1шт.

26

84361104

PIPE

Rear Delivery, Start Serial: D6932

1шт.

27

87397065

BRAKE LINE

, Serial Range: D6530-C6932

1шт.

27

84329669

BRAKE LINE

, Start Serial: D6932

1шт.

28

84330987

SUPPORT

, Start Serial: D6932

1шт.
