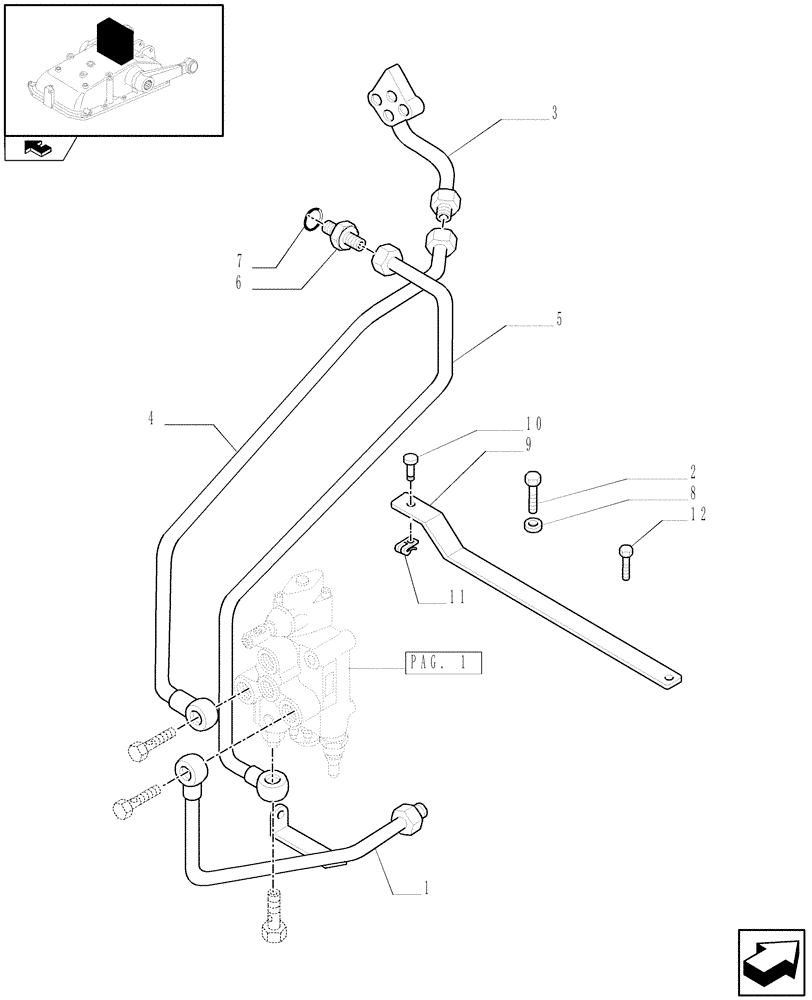

Запчасти Case IH FARMALL 90 (1.82.7[02]) - 1 CONTROL VALVE - PIPES (VAR.335366-335412) (07) - HYDRAULIC SYSTEM

1

5092047

TUBE

1шт.

2

15540931

BOLT,Hex, M12 x 1.25 x 55mm, Cl 10.9

2шт.

2

15541031

BOLT,Hex, M12 x 1.25 x 60mm, Cl 10.9

5шт.

2

15540831

BOLT,Hex, M12 x 1.25 x 50mm, Cl 10.9

15шт.

3

5128343

RIGID TUBE

1шт.

4

5092061

BRAKE LINE

1шт.

Base Equipment for Trailer Brake

1шт.

5

5097419

HYD TUBE

1шт.

Base Equipment for Trailer Brake

1шт.

6

5087002

HYD CONNECTOR

1шт.

7

10264560

SEAL,24mm ID x 32mm OD x 1.5mm Thk

1шт.

8

11198679

BELLEVILLE WASHER,13mm ID x 24mm OD x 0.6mm Thk

21шт.

9

87391055

ARM

1-2 Control Link

1шт.

10

87392055

PIN,6mm OD x 15mm L

2шт.

11

11063976

CLIP

2шт.

12

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.
