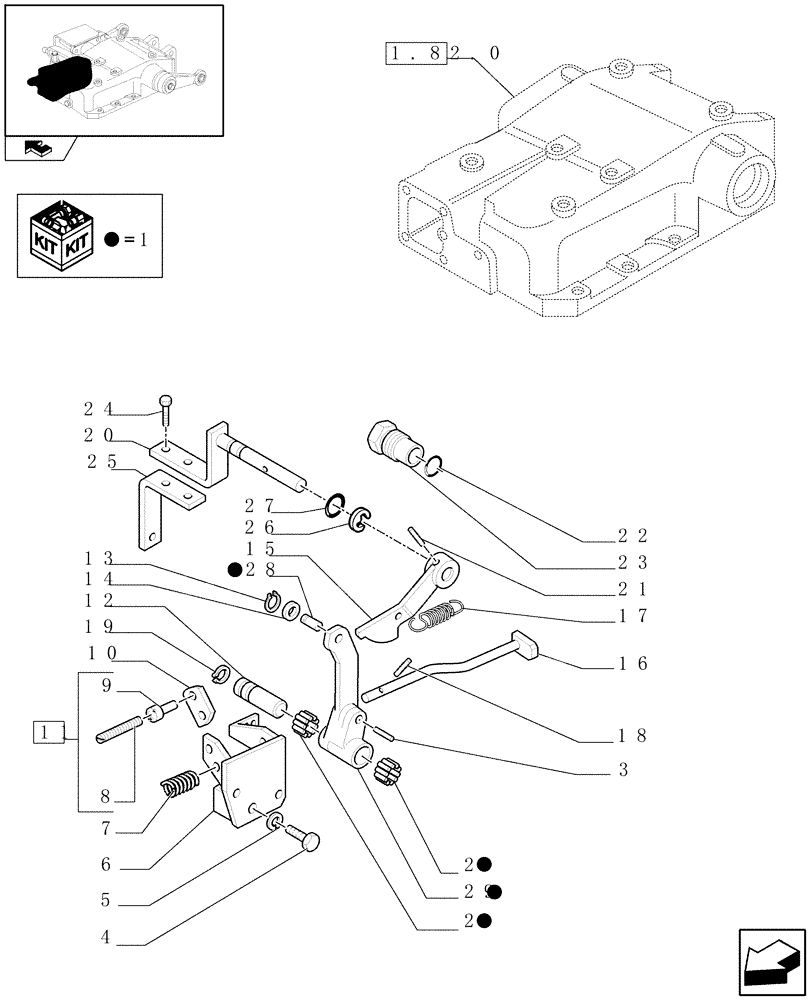

Запчасти Case IH FARMALL 90 (1.82.5[07]) - LIFT CONTROLS - TIE-ROD, LEVER AND BEARING (07) - HYDRAULIC SYSTEM

1

5126221

ROD

1шт.

2

5117138

ROLLER BEARING,12 mm ID x 16 mm OD x 10 mm

2шт.

3

278768

LOCK PIN

1шт.

4

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

6

5129400

SUPPORT

1шт.

7

4959139

SPRING,Compression, 15.5mm OD x 71mm L

1шт.

8

5121522

ADJUSTMENT SCREW,M8 x 1.25 x 55mm

1шт.

9

5121523

NUT,M8 x 1.25 x 26mm

1шт.

10

5120284

PAD

1шт.

11

5087209

BOLT AND NUT

1шт.

12

5117156

PIN,12mm OD x 61.5mm L

1шт.

13

9990741

SNAP RING,M8, Ext

1шт.

14

5111028

ROLLER,18mm OD x 10mm L

1шт.

15

5129396

LEVER

1шт.

16

5120285

ROD

1шт.

17

4973650

SPRING,Extension, 15mm OD x 57mm L

1шт.

18

14163970

COTTER PIN,M4 x 20, Slotted

1шт.

19

13397576

CIRCLIP,12mm ID

1шт.

20

5089954

LEVER

1шт.

21

13938070

ROLL PIN,M4 x 24mm OAL, Coiled

1шт.

22

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

23

5129399

PLUG,M22 x 1.5

1шт.

24

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

25

87601160

SUPPORT

, Serial Range: -C6492

1шт.

25

5099847

SUPPORT

, Start Serial: D6492

1шт.

26

11088176

CIRCLIP,M11

1шт.

27

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

28

5129392

PIN,7.5mm OD x 22.5mm L

1шт.

29

5126220

CONNECTING LINK

1шт.
