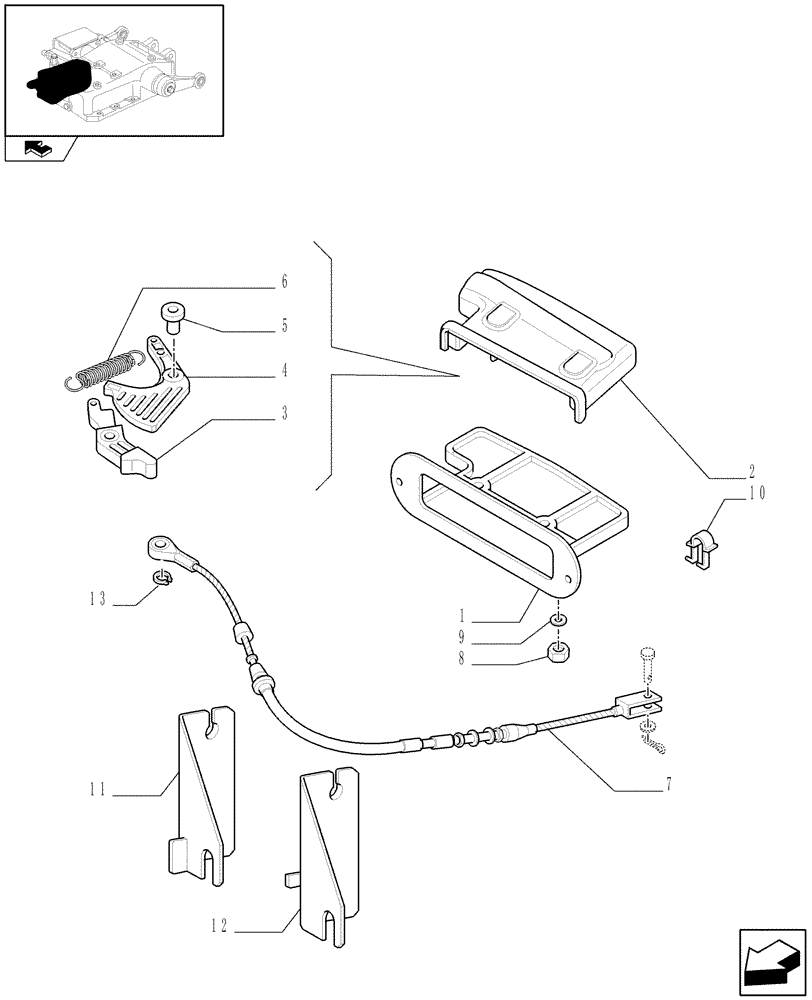

Запчасти Case IH FARMALL 90 (1.82.5[03A]) - LIFT CONTROLS - LEVERS AND FLEXIBLE CABLE - D6492 (07) - HYDRAULIC SYSTEM

1

87390528

SUPPORT

W/CAB

1шт.

2

87390496

SUPPORT

1шт.

3

87564632

LATCH

1шт.

4

87564634

LEVER

1шт.

5

87564636

SPACER

2шт.

6

5128638

SPRING

1шт.

7

84238070

CABLE,1355mm L

1шт.

8

12574211

NUT,M6 x 1, Cl 8

2шт.

9

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

10

14569680

SPRING CLIP,6.5mm Hole, Gray

1шт.

11

87601161

SUPPORT

1шт.

12

11087676

CIRCLIP,M5

1шт.

13

84488914

SUPPORT

1шт.

Rear Electrohydraulic Diff. Lock and Electrohydraulic 4WD, Engagement; VAR.330384 (743909)

1шт.
