Запчасти Case IH FARMALL 90 (1.82.4) - LIFTER DISTRIBUTOR AND VALVES (07) - HYDRAULIC SYSTEM

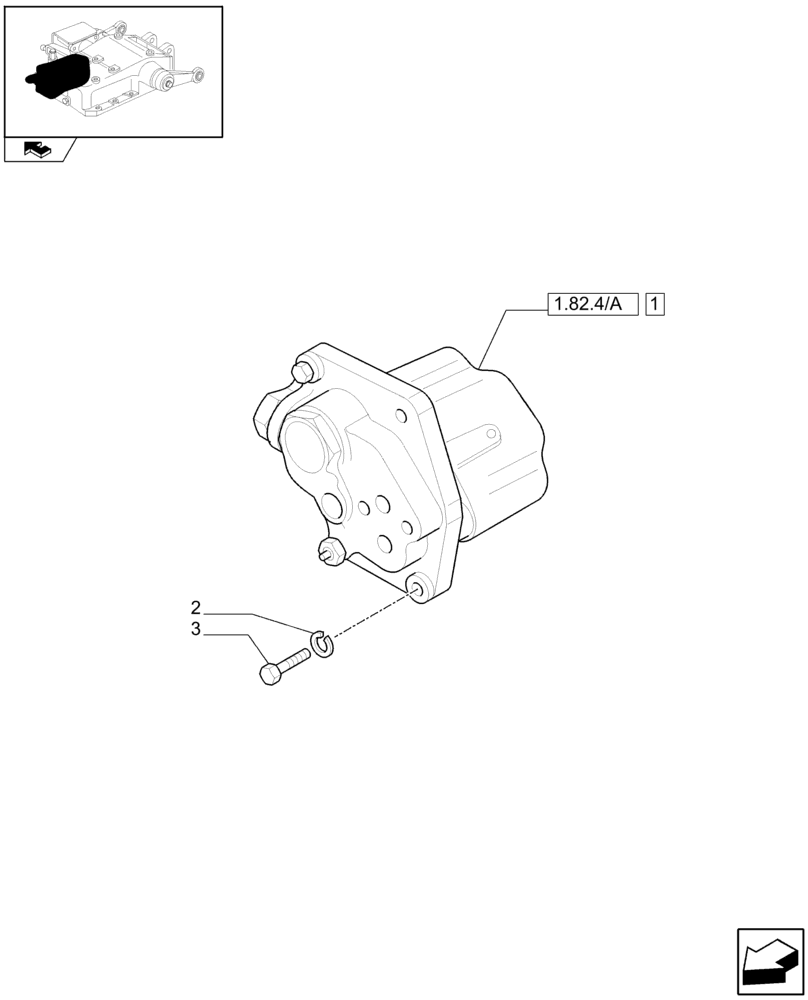

Схема запчастей Case IH FARMALL 90 - (1.82.4) - LIFTER DISTRIBUTOR AND VALVES (07) - HYDRAULIC SYSTEM
1.82.4/a
1
3
2
home

Артикул

Название

Примечание

Количество

1

5089469

CONTROL VALVE

ASSY

1шт.

5089469R

REMAN-HYD VALVE

FARMALL 90, FARMALL 95 all (TIER 3) (1/07-)

1шт.

5089469C

CORE-VALVE HYD

Return Number

1шт.

2

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

3

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 5
