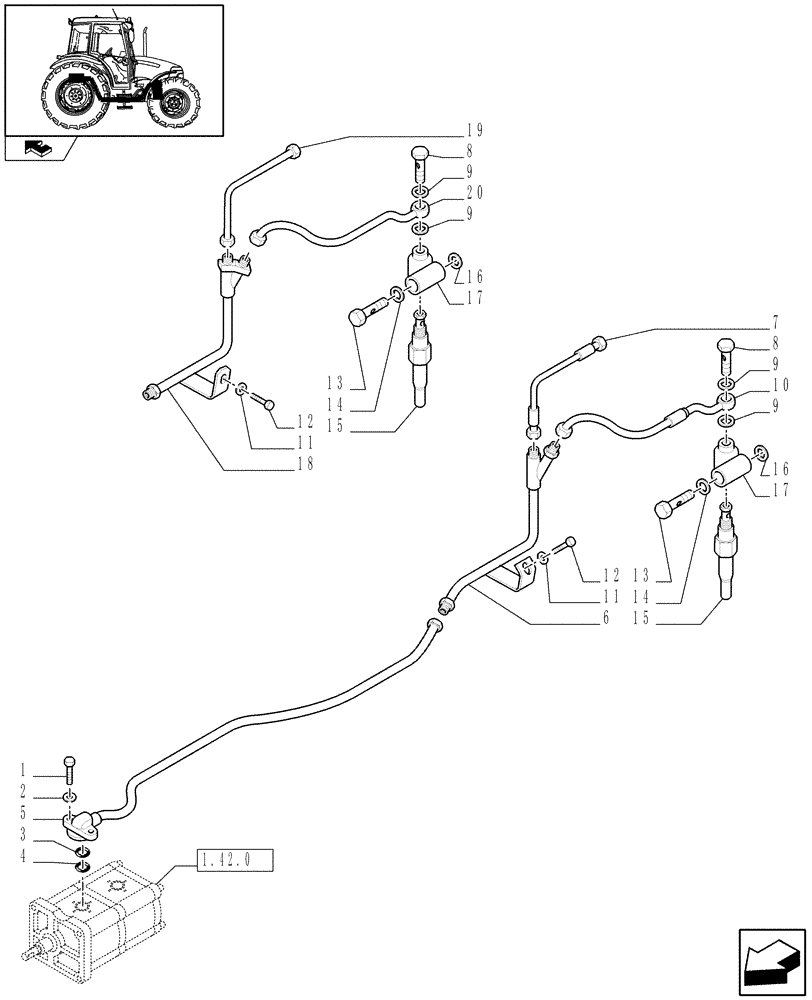

Запчасти Case IH FARMALL 90 (1.82.1[02]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

1

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

2шт.

2

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

4шт.

3

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

3шт.

4

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3шт.

5

5094382

PIPE

1шт.

5

5094383

PIPE

1шт.

For High Clearance Version (Valid for 95 Model only)

1шт.

6

5096000

PIPE

, Serial Range: -C6567

1шт.

7

5096001

HYDRAULIC HOSE,9.50 mm ID x 397.00 mm, SAE 100 R1AT

, Serial Range: -C6567

1шт.

8

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

1шт.

9

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

2шт.

10

5096002

HOSE

, Serial Range: -C6567

1шт.

11

10569471

LOCK WASHER,Lock, 3/8"

2шт.

12

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

1шт.

13

5120450

BANJO BOLT

M22 x 1.5 x 50

1шт.

14

10264560

SEAL,24mm ID x 32mm OD x 1.5mm Thk

1шт.

15

5011763

VALVE PRESSURE RELIE

1шт.

16

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

17

5120449

BODY

1шт.

18

84241042

PIPE

, Start Serial: D6567

1шт.

19

84237320

PIPE

, Start Serial: D6567

1шт.

20

84237059

PIPE

, Start Serial: D6567

1шт.
