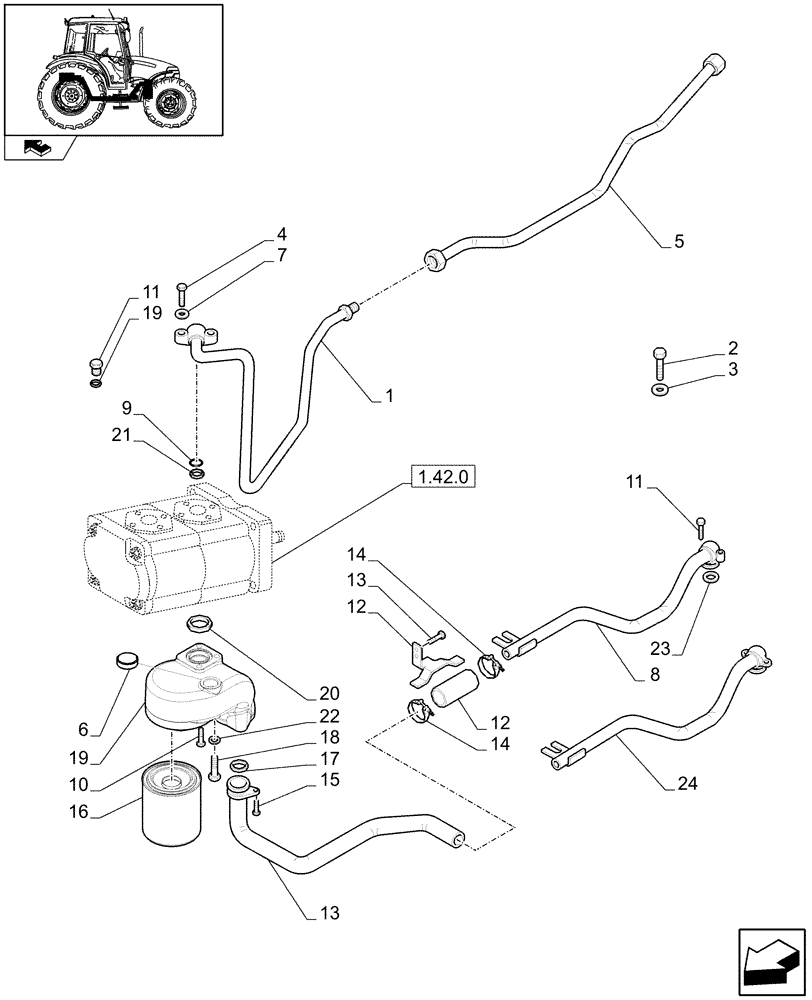

Запчасти Case IH FARMALL 90 (1.82.1[01A]) - LIFT - PIPES & PARTS - D6413 (07) - HYDRAULIC SYSTEM

1

84220438

TUBE

Front Delivery

1шт.

2

15540721

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

1шт.

3

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

1шт.

4

14305521

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

5

84579564

HYDRAULIC HOSE,12.7mm ID x 960mm L, SAE 100R2

Rear Delivery for the Remote Valves, L=960 mm

1шт.

6

14328801

PLUG,M22, Tapered

1шт.

7

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.

8

84216740

PIPE

Oil Suction Rear, Serial Range: -C6864

1шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

10

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

12

87626258

FUEL HOSE,45.00 mm ID x 90.00 mm, SAE J200

1шт.

13

87618888

PIPE

Oil Suction, Front

1шт.

14

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

D=40-60

2шт.

15

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

47131195

HYDRAULIC OIL FILTER

1шт.

Valid with JX90, JX95 Models

1шт.

17

5174527

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

18

14309020

HEX SOC SCREW,M8 x 1 x 70mm, Cl 8.8

1шт.

19

47129567

FILTER HEAD

1шт.

20

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

21

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

1шт.

22

14330260

SEALING WASHER,M8.2 x 12 x 1

3шт.

23

12601574

WAVE WASHER,Wave, M13

, Start Serial: D6864

2шт.

24

84344763

PIPE

Oil Suction Rear, Start Serial: D6864

1шт.
